Small Scale Sachet Powder Packing Machine

1. 30-50 bag/mins

2. 1-100g packing range

3. Back sides seal, 3/4 sides seal available.

4. Including production,expiration date printing.

Package: wooden case ( free fumigation)



1.Machine Introduction:
   Are you looking for a small sachet packing machine which can packing 1-100g powder product by automatic?Do you trying to find a economical packing machine model but with high quality and assured service?
   Here
Our Small Powder Packing Machine can be your first choice!
   Machine was using auger filler feeding system, which is easy to taking out for cleaning and install back. Suitable products like: milk powder, coconut powder, flour, spices, coffee powder etc.

   The Packing weight tolerance only ± 1%.(depending on the material size).
   If working with other filling system like: volumetric cup, liquid pump, chain buckets, line weigher etc can be using to pack grain, liquid, solid products.Client just need install packing film with achine, then it willautomatic to achieved: bag forming, weight metering, product filling, bag sealing, counting, cutting and batch number printing. Bag type like: pillow bag, 3/4 sides seal bag, linked bag was all available!


2.Packing film options:
Cellophane/polythene ,polyester/Coating aluminum/polythene, polyester /polypropylene, bopp film nylon compounded film etc, which over 2 layers and can be heat-sealed.

3.Available bag sealing option:


4.Machine technical parameter:

Sachet type

3/4 sides seal,back seal

Sachet size range

Max.Size

150mm(W)×200mm(L)

Min.Size

30mm(W)×40mm(L)

Filling weight range

≤100g ( suggested)

Packing speed

10-50 bags/min

Electricity  Power

2.2KW

Power Electricity

220V single phase,  50 / 60Hz

Film Roll Diameter

≤Φ300mm

Max Film Width

320mm

Machine Dimension(L×W×H)

680mm×1050mm×1740mm

Weight

300KG

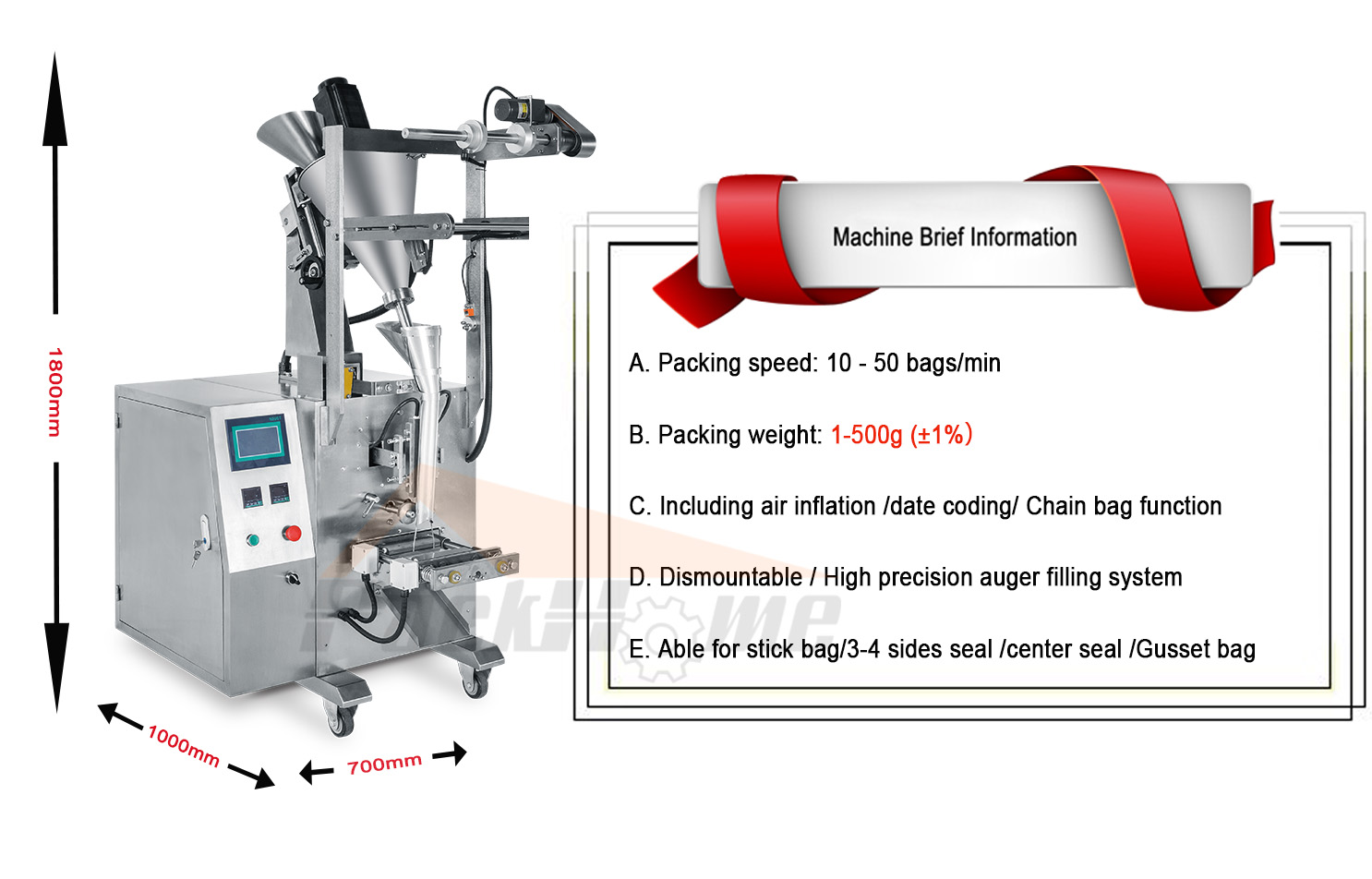

5.Powder packing machine outside look:

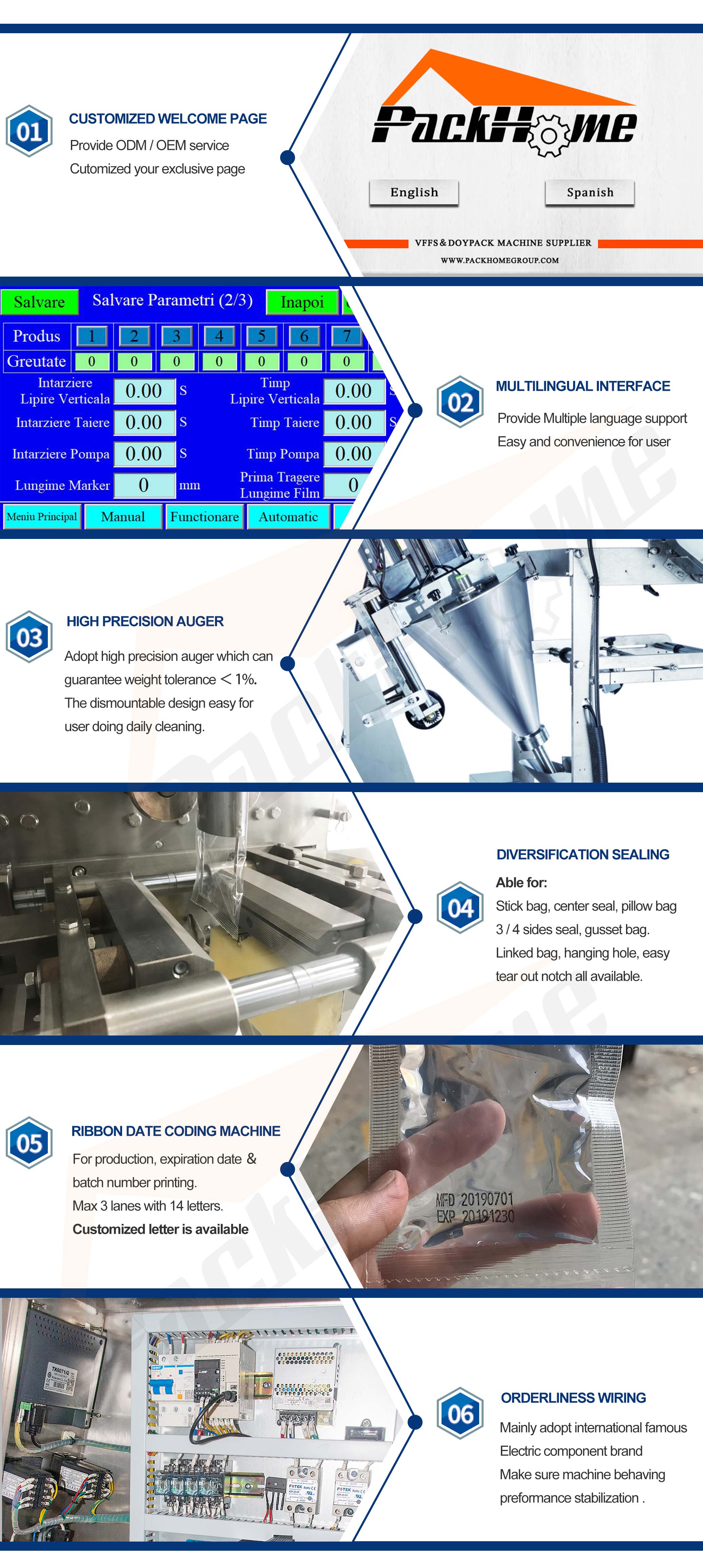

6. Machine detail display:


7. Powder packing machine bag sealing type and effect:


8. Strong non-fumigation wooden case machine package:


9. Machine video on youtube:
  https://youtu.be/EriXwOXzyRM
(3 sides bag seal 5g powder package example)

  https://youtu.be/WcuzHSDSzJU (stick bag package example)

10. Machine real project cases:
http://www.packhomegroup.com/en/project-case_l146_1.html

11. Our company strength:
    A. 24 hours standby for machine inquiry and technicial support need.
    B. Provide on site installation and debugging service.
    C. All machine with CE certification.
    D. With distributor in: Italy, Japan, Korea, USA, Australia, Malaysia,Africa, South America market etc.
12. Frequently Asked Question

     A. Price item options: EXWORK,FOB,CIF,CFR
     B. Payment terms : T/T 30% deposit, 70% balance before shipment.
     C. Delivery Time : 20- 30 days depending on packing requirement.
     D. Shippment : By sea or by air.
     E. Warranty time :One year free for replacement of wearing parts, cost price beyond warranty.


For better offer suggestion and prepare quotation, hope we can know below info from you:

A. Your bag size

B. Your bag picture

C. Packing weight

D. Packing speed requirement

E. Exactly product need to packed
