1kg Powder Pouch Form Fill Seal Machine

1.Max packing weight 5kg.

2.30-60 bags/mins packing speed.

3.Including production, expiration date printing.

4.Piillow bag, gusset bag, quad bag was available.

Package: wooden case ( free fumigation)

Are you looking for a sachet packing machine which can packing from 100g-2kg powder product by automatic? Do you trying to find a economical packing machine model but with high quality and assured service?
Our Powder Pouch Form Fill Seal Machine can be your first choice!
  Machine adopt PLC control system and air cylinder for operation, make sure each parts can be working independent. Easy for maintain and cleaning. Nitrogen gas inflation, batch number printing, handing hole making, etc function was available. Bag type like: pillow bag, 4 sides bag seeal, gusset bag, quad bag was no problem for this model.
   Suitable products like: flour, milk powder, chili powder, coconut powder etc. The Packing weight tolerance only ± 1%.
If working with other filling system like: dosing cup, liquid pump, chain buckets, line weigher etc can be using to pack grain, liquid, solid products.

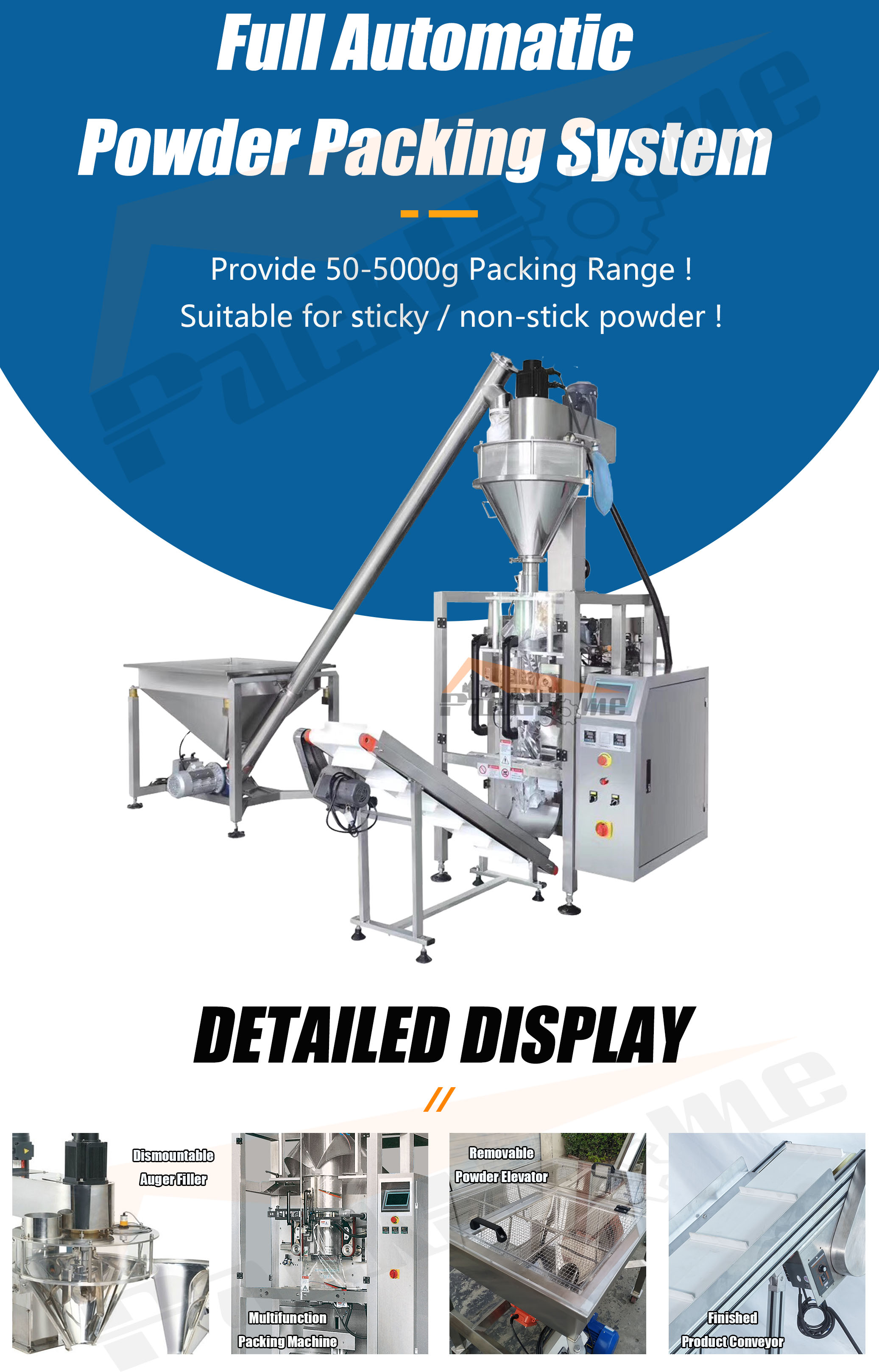

1.Machine Introduction:


A. Powder elevator: Convinence for user to loading product into packing machine, it is easy to do                                               cleaning.

B. Auger filler system: used to dispense a variety of dry free flowing powder product such                                                              as:coconut powder, milk powder, chili powder etc.Augers of varying sizes can be                                          changed within minutes to accommodate various products and cleaning, cause                                             it is using bolt connection.

C. Sealing part: adopt servo motor film pulling, servo motor sealing, working with horizontal zigzag                                       cut effect, make the packing speed faster and bag sealing better.

D. Finished products conveyor: it is using to help user receive the product when after package and                                                               send into next process.

2.Packing film options:
Cellophane/polythene ,polyester/Coating aluminum/polythene, polyester /polypropylene, bopp film nylon compounded film etc, which over 2 layers and can be heat-sealed.

3. Available bag sealing option:


4. Technical parameter:

Sachet type

Pilow bag, 4 sides bag seal
gusset bag, quad bag

Sachet size range

Max.Size

100mm(W)×350mm(L)

Min.Size

100mm(W)×400mm(L)
(2 times film pulling length can be 800mm)

Filling weight range

≤5kg

Packing speed

10-50 bags/min
(depending on bag size and filling weight)

Electricity  Power

3.5KW

Power Electricity

220V /380V,  50 / 60Hz

Film Roll Diameter

≤Φ450mm

Max Film Width

720mm

Machine Dimension(L×W×H)

1400mm x 1200mm x 1600mm

Weight

500KG

5. Packaging Machine feature picture:

6. Packaging machine bag sealing type and effect:



7. Strong non-fumigation wooden case machine package:

8.Powder pouch form fill seal machine video:

    https://youtu.be/wXzYUtun7WQ (Pillow bag powder package example)

    https://youtu.be/JEqBA3Z67kc (powder 4 sides bag seal package example)

9. Machine real project cases:
    http://www.packhomegroup.com/en/project-case_l146_1.html

10. Our company strength:
    A. 24 hours standby for machine inquiry and technicial support need.
    B. Provide on site installation and debugging service.
    C. All machine with CE certification.
    D. With distributor in: Italy, Japan, Korea, USA, Australia, Malaysia, Africa,South America etc.
11. Frequently Asked Question
     A. Price item options: EXWORK,FOB,CIF,CFR
     B. Payment terms : T/T 30% deposit, 70% balance before shipment.
     C. Delivery Time : 20- 30 days depending on packing requirement.
     D. Shippment : By sea or by air.
     E. Warranty time :One year free for replacement of wearing parts, cost price beyond warranty

12. OEM and ODM service:


For better offer suggestion and prepare quotation, hope we can know below info from you:

A. Your bag size

B. Your bag picture

C. Packing weight

D. Packing speed requirement

E. Exactly product need to packed
