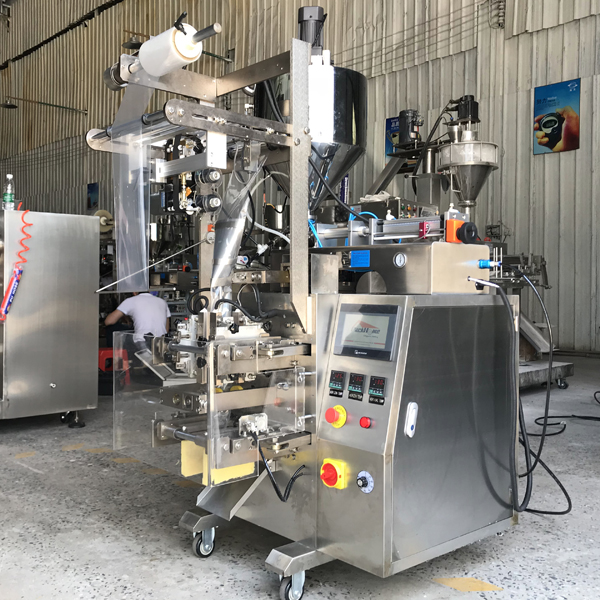

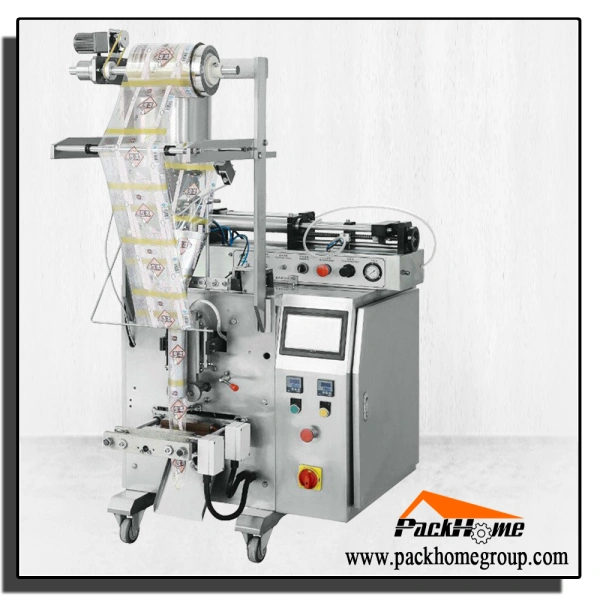

Small Liquid Paste Filling Machine
Small Liquid Paste Filling Machine
Small Liquid Paste Filling Machine
Small Liquid Paste Filling Machine
  • Small Liquid Paste Filling Machine
  • Small Liquid Paste Filling Machine
  • Small Liquid Paste Filling Machine
  • Small Liquid Paste Filling Machine
  • Small Liquid Paste Filling Machine

Small Liquid Bag Filling Machine

20-50 bag/mins.

1-100g packing range.

Pillow bag, 3/4 sides seal, Chain bag available.

Including production,expiration date printing.

Package: wooden case ( free fumigation)

Description

Looking for an automatic liquid filling machine for small sachets that handles volumes from 1–1000g?

Need an economical model without compromising on quality or service?

Our Small Liquid Sachet Packaging Machineis your ideal solution.

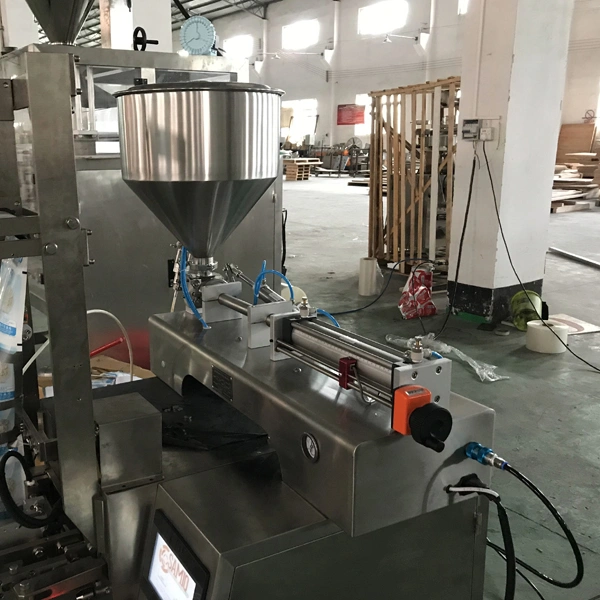

Designed for liquid and paste products, this machine features a pneumatic piston filling pump for versatile and reliable performance. With quick-disconnect fittings, installation and daily cleaning are straightforward. The high-precision, leak-free filling nozzle ensures weight accuracy within ±1%.

Operation is simple: just load the packaging film, and the machine automatically forms bags, fills with preset weights, prints production/expiration/batch details, and seals each sachet securely. Additional functions such as stirring, hopper heating, nitrogen flushing, connected bag output, and hang hole punching are also available.

Ideal for businesses seeking a cost-effective yet high-quality liquid filling machine backed by assured service support.


Application

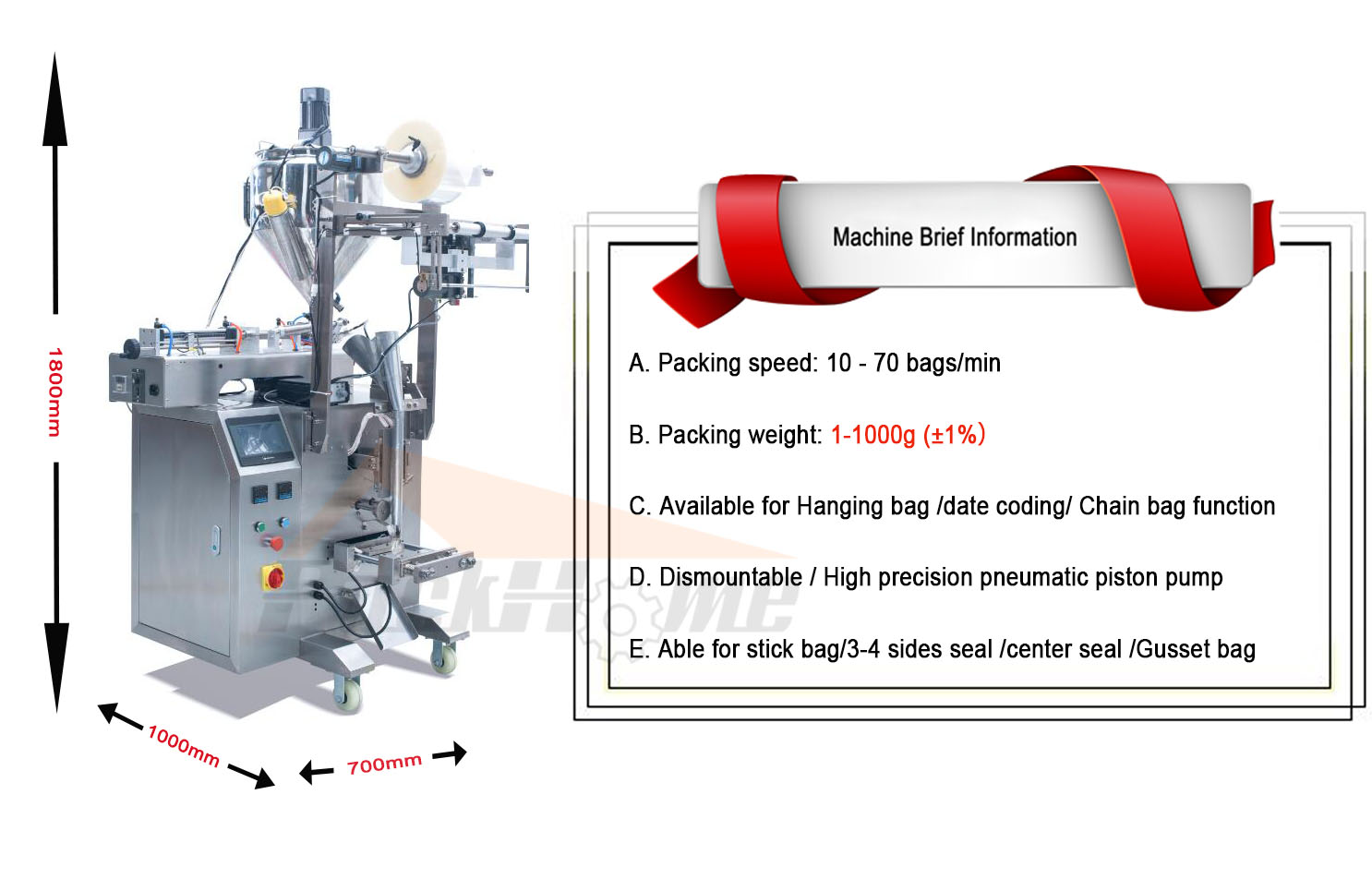

Machine Parameter

Available Sealing Way

Stick bag, pillow bag, center seal, 3 / 4 sides bag seal, linked bag, gusset bag

Sachet size range

Min.Size

25mm(W) × 40mm(L)

Min.Size

150mm(W) × 200mm(L)

Filling weight range

≤1000g ( require replace volumetric cups)

Packing speed

10-50 bags/min

Power electricity

220V / 1P / 50Hz / 2Kw ( customized)

Film roll diameter

≤Φ300mm

Film thickness

0.04-0.08mm

Suitable film material:

PE / PP / OPP / PVC / PET / CPP / NY / AL / VMPET

( at least 2 layer)

Machine control system

PLC + Touch screen

Machine package size

300kg, 2.2 m3

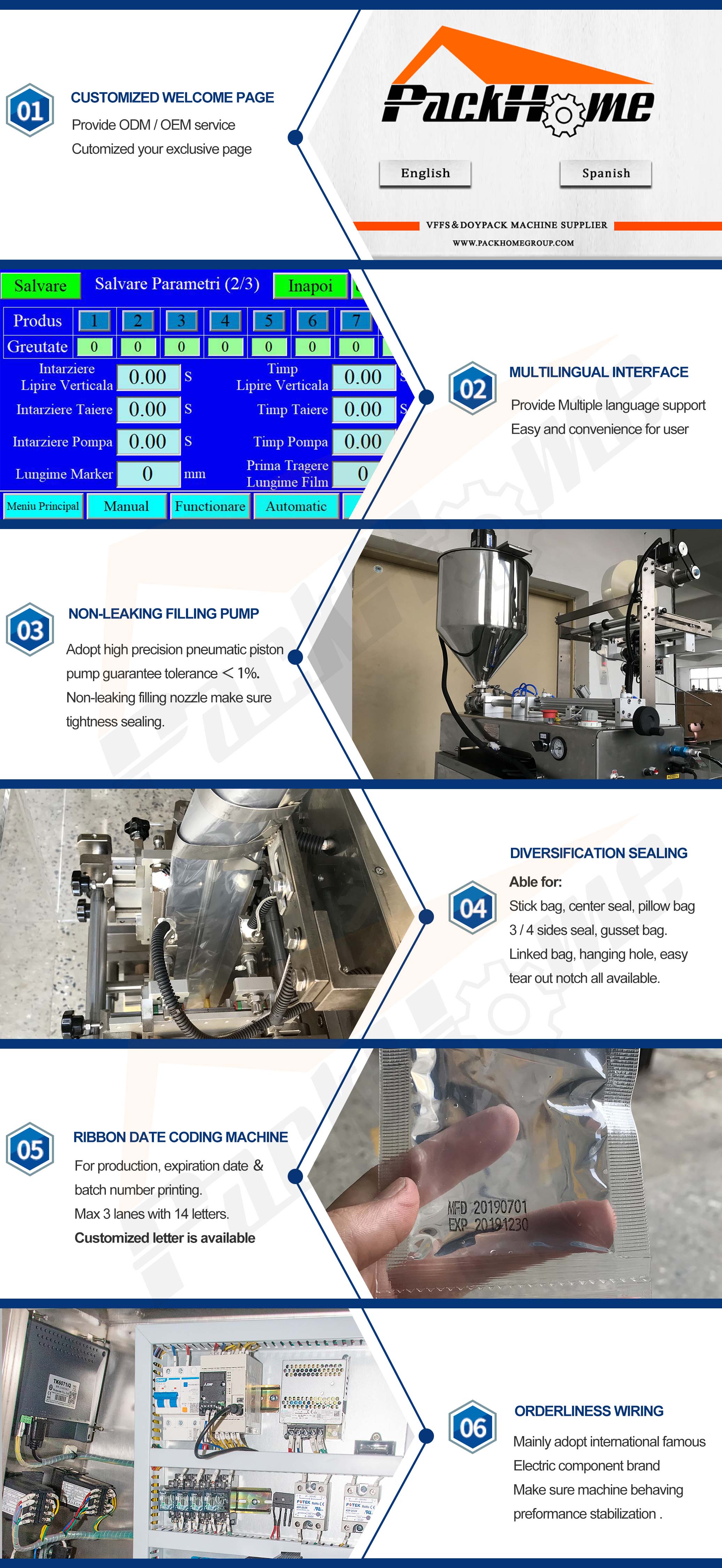

Feature Picture


Export cargo packing


What we do for client:
1. Using strong non-fumigation wooden box package.
2. All cargo stick with unique client`s shipping mark.

Customers Visit


Important

For better offer suggestion and prepare quotation, hope we can know below info from you:

A. Your bag size

B. Your bag picture

C. Packing weight

D. Packing speed requirement

E. Exactly product need to packed
