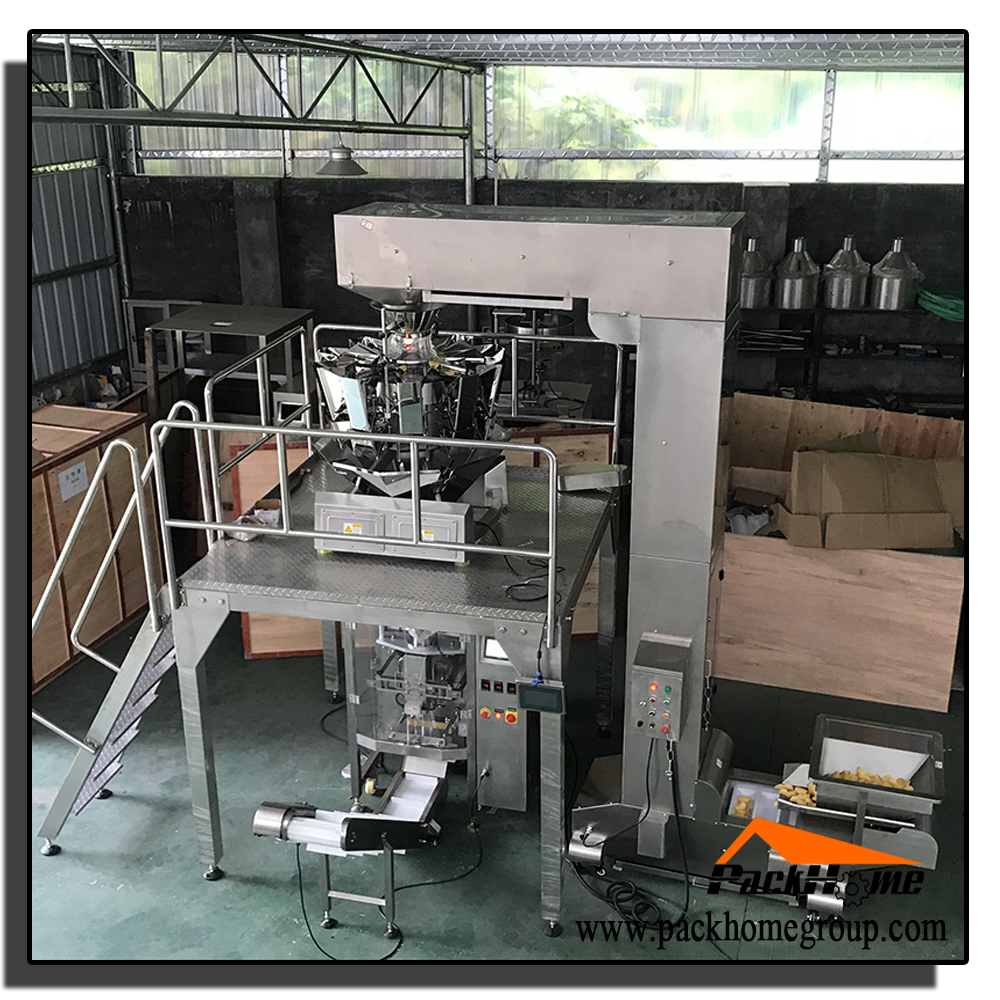

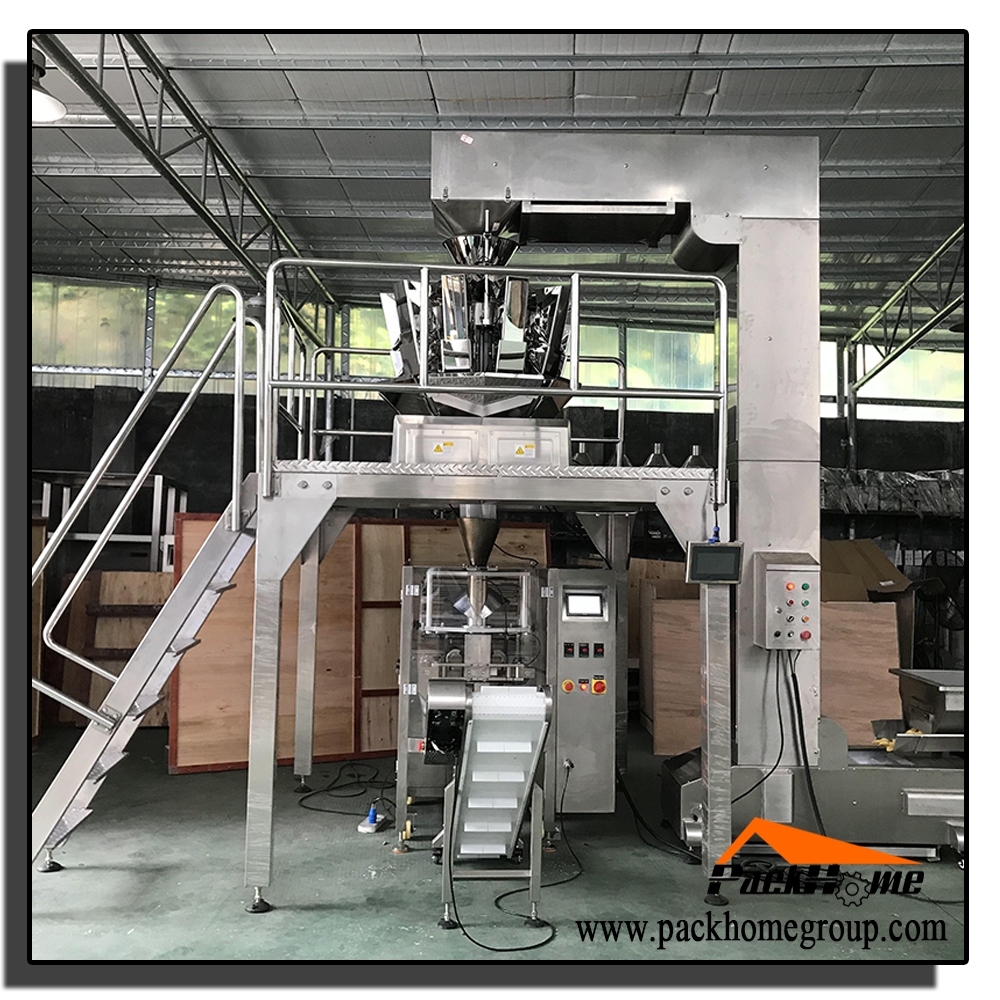

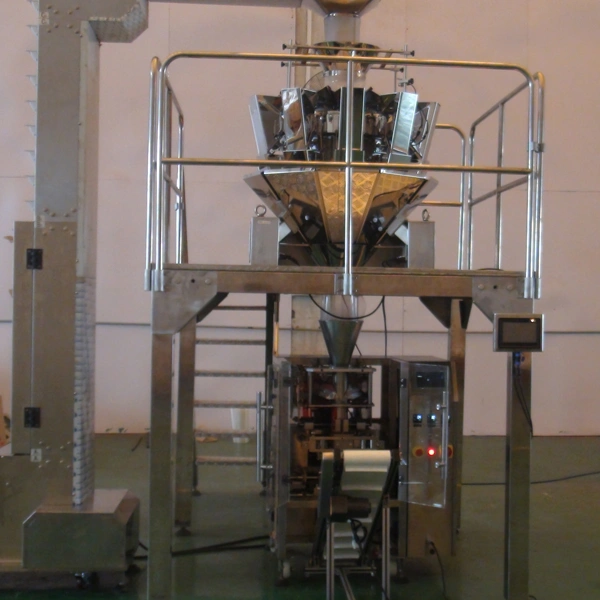

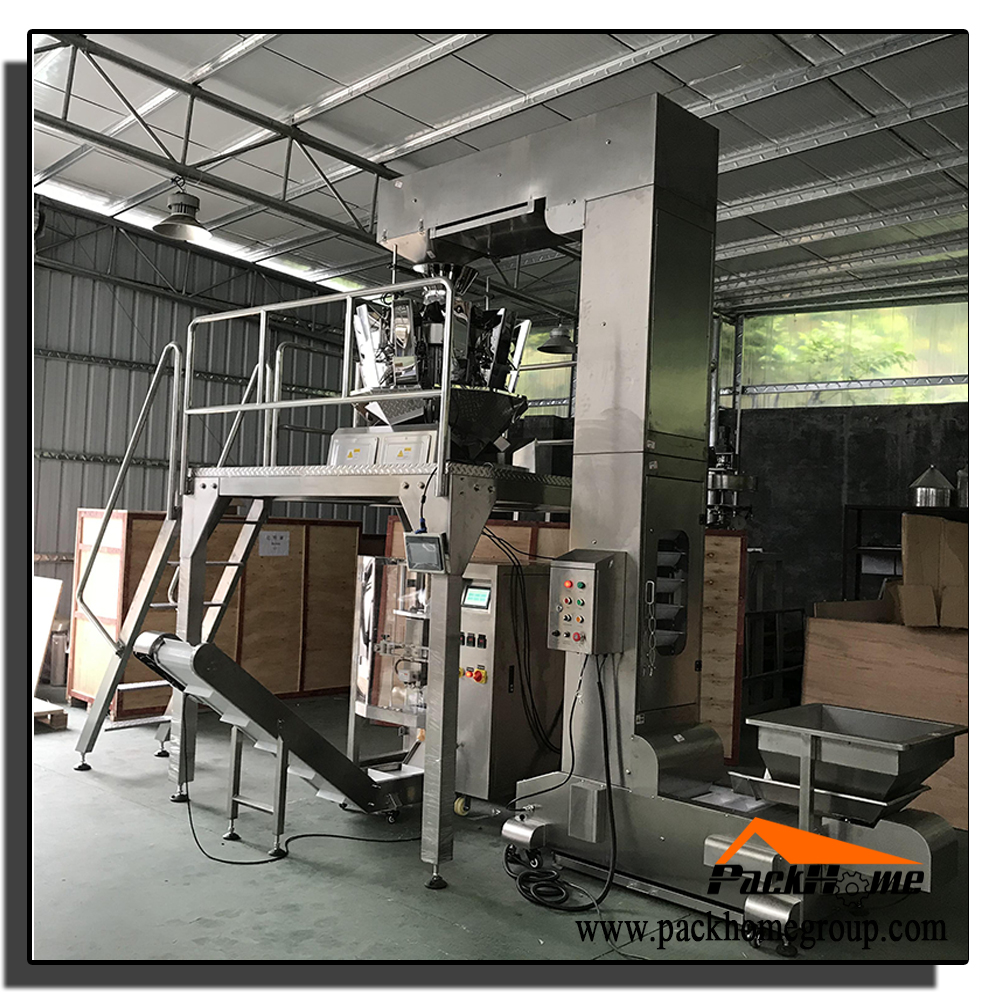

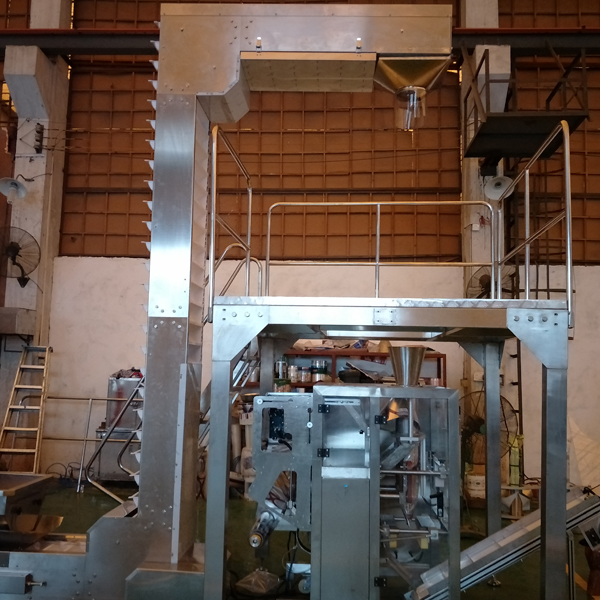

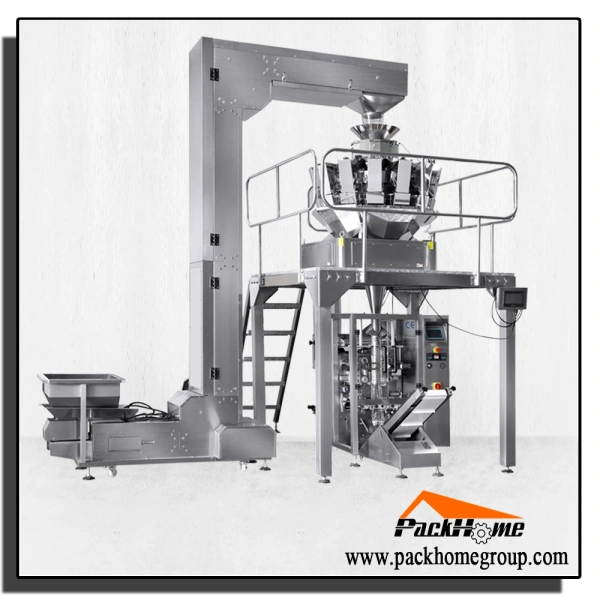

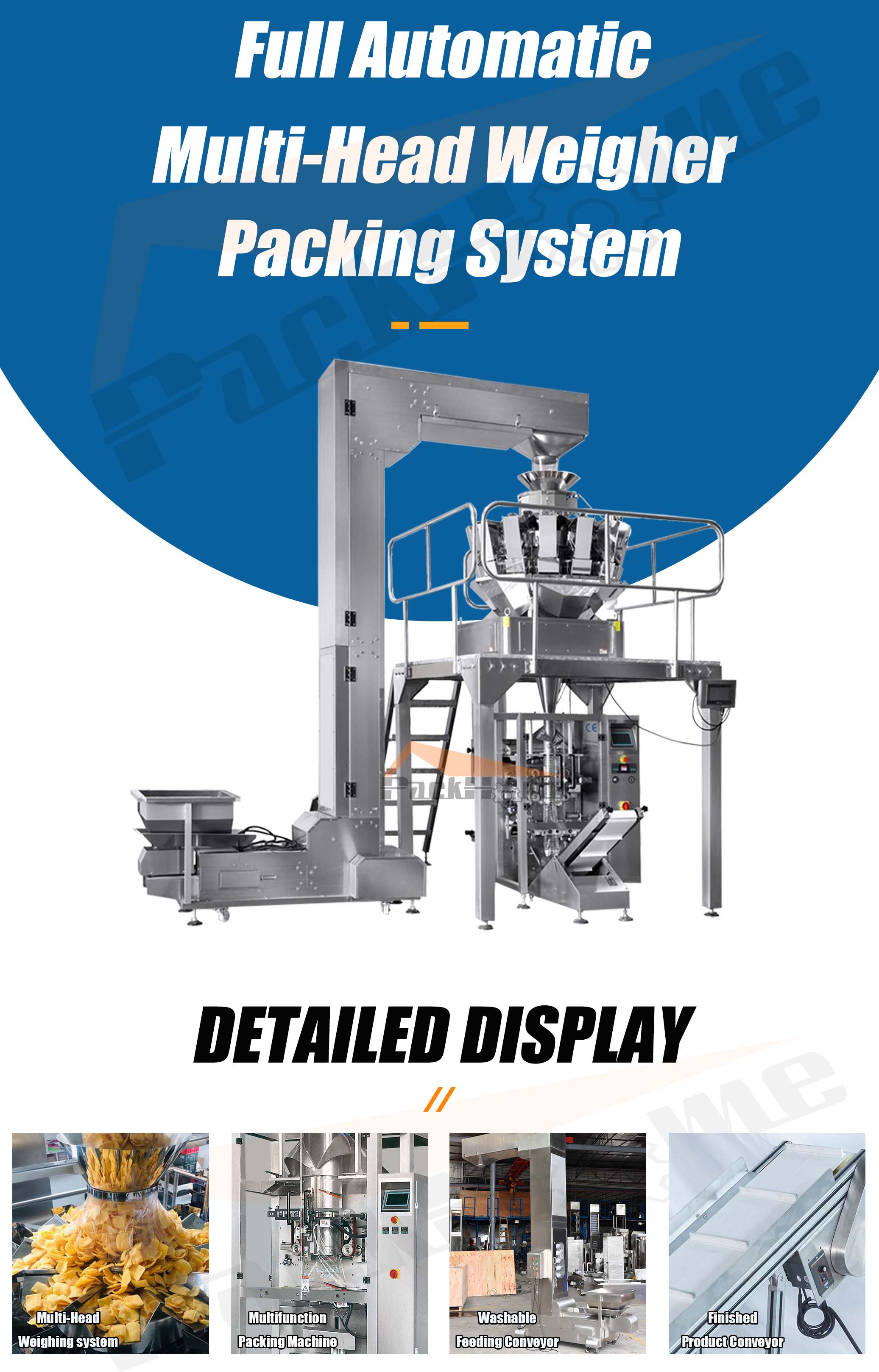

Multi-Head Weigher Automatic Packing Line

1.Max packing weight 5kg.

2.30-60 bags/min packing speed.

3.Interlock automatic sachet packing line.

4.Suitable for pillow bag, quad bag, gusset bag.


Package: wooden case ( free fumigation)


Description

Are you looking for a small sachet packing machine which can packing from 1-500g grain product by full automatic? Do you trying to find a economical packing machine model but with high quality and assured service?Our Multi-Head Weigher Automatic Packing Line can be your first choice!

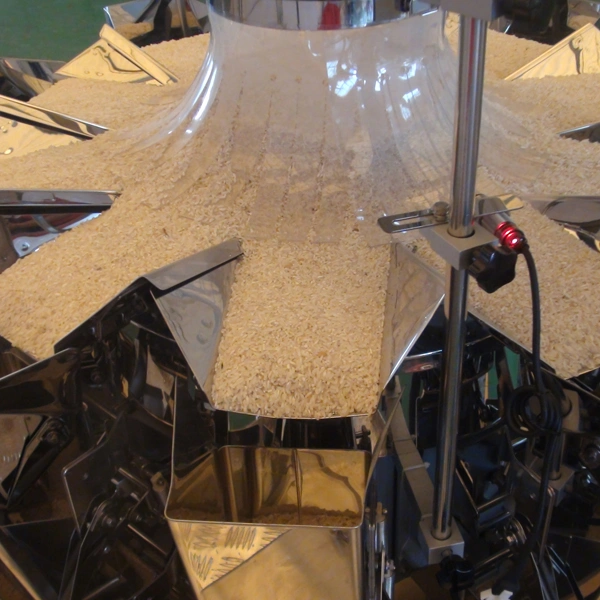

     Machine adopted multi-head weighing system, which it is suitable for most of the grain / solid product such like: peanut, coffee bean, potato chips, dog treats, noodles, hardwares etc. With the high precision and sensititivity sensor, it can guarantee the weight tolearance under ±0.3-1%.

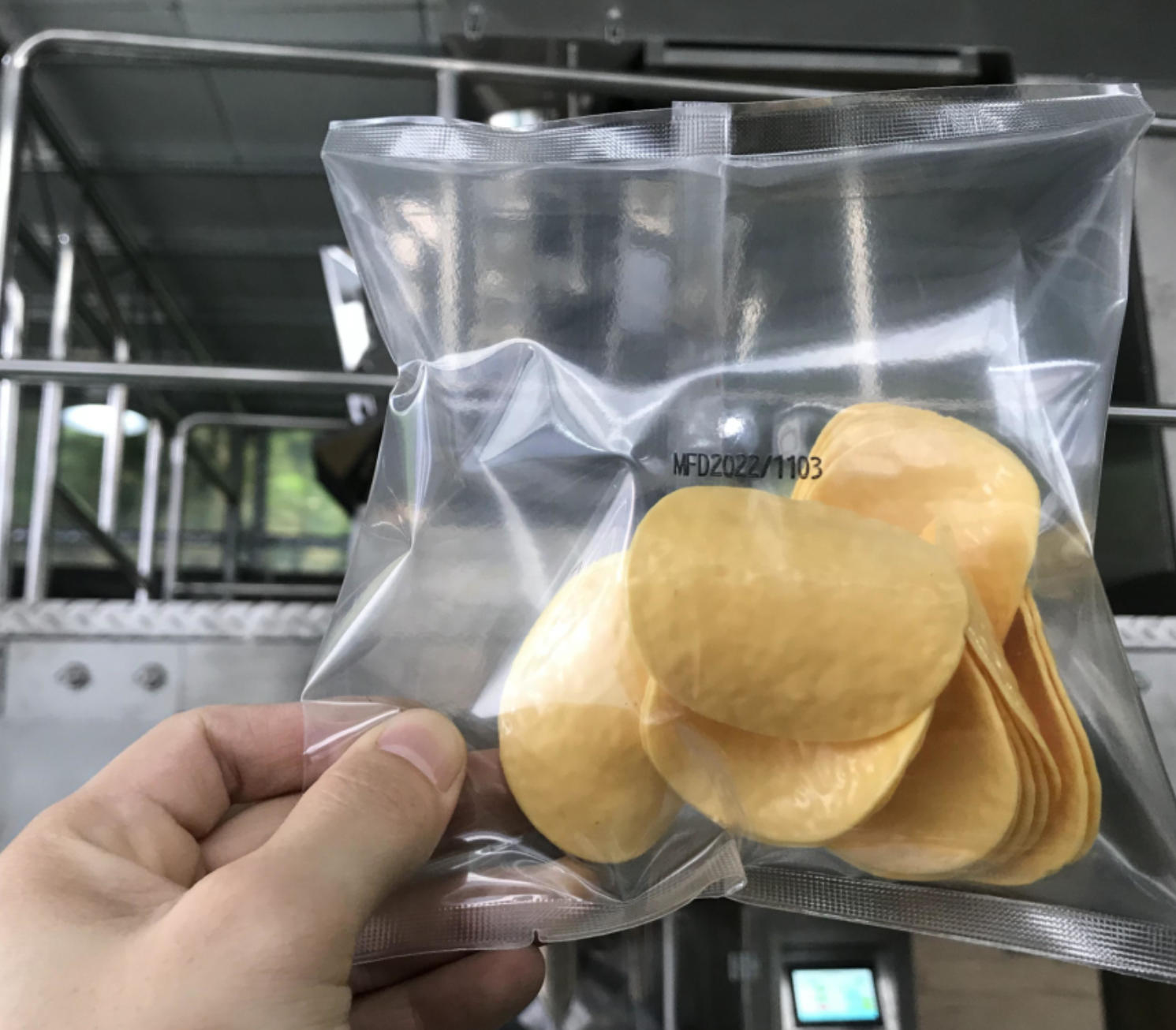

    Machine operation is very easy, user just need put on the packing film, machine will automatic forming bag, filling material with the setting weight, printing on the production /expirtation / batch number and sealing the bag tightness. Function like: nitrogen gas feeding and linked bag, hanging hole punch also available!


Application

Machine Parameter

Available Sealing Way

Pillow Bag, Gusset Bag, Quad Bag, Linked Bag, 4 Sides Seal Bag

Sachet size range

Min.Size

50mm(W) × 80mm(L)

Max.Size

450mm(W) × 800mm(L)

Filling weight range

≤10000g ( require change bag former )

Packing speed

10-50 bags/min

Power electricity

220V / 1P / 50Hz / 2-8Kw ( customized)

Film roll diameter

≤Φ300mm

Film thickness

0.04-0.15mm

Suitable film material:

PE / PP / OPP / PVC / PET / CPP / NY / AL / VMPET ( at least 2 layer)

Machine control system

PLC + Touch screen

Available function

Dust cleaning / Thermal transfer printing / Europe hole punching / Nitrogen gas feeding / Air exhaust

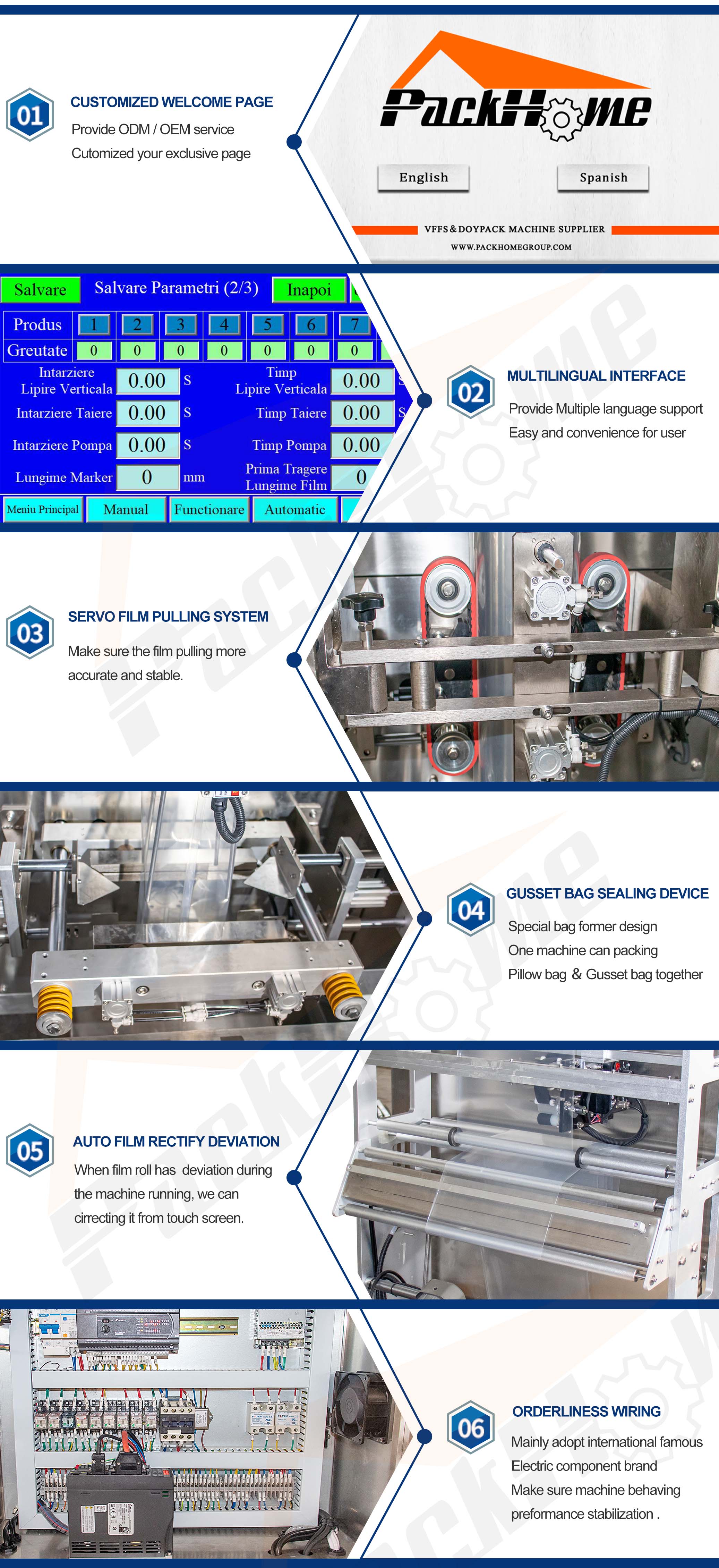

Feature Picture


Export cargo packing


What we do for client:
1. Using strong non-fumigation wooden box package.
2. All cargo stick with unique client`s shipping mark.

Customers Visit


Important

For better offer suggestion and prepare quotation, hope we can know below info from you:

A. Your bag size

B. Your bag picture

C. Packing weight

D. Packing speed requirement

E. Exactly product need to packed
