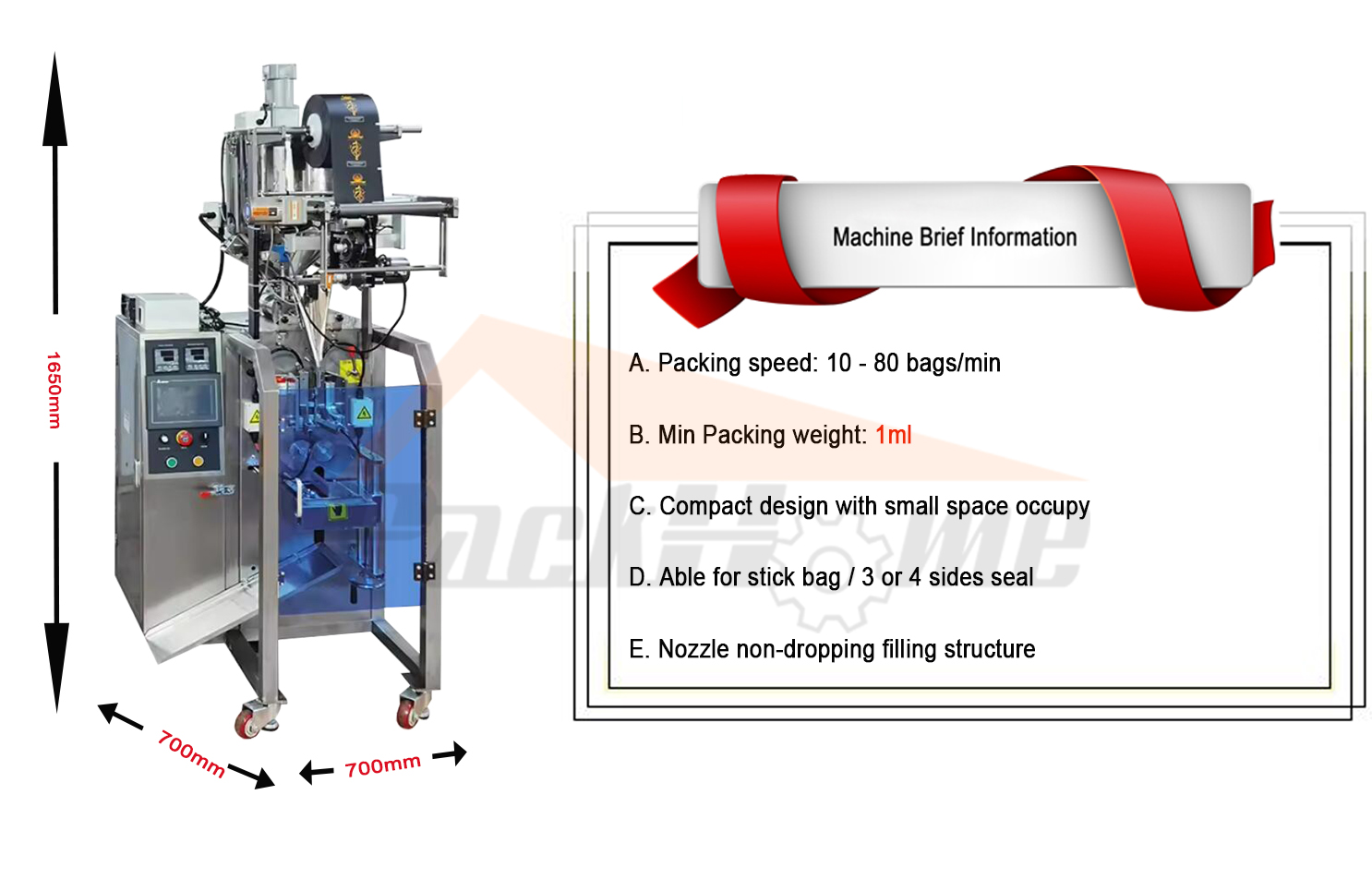

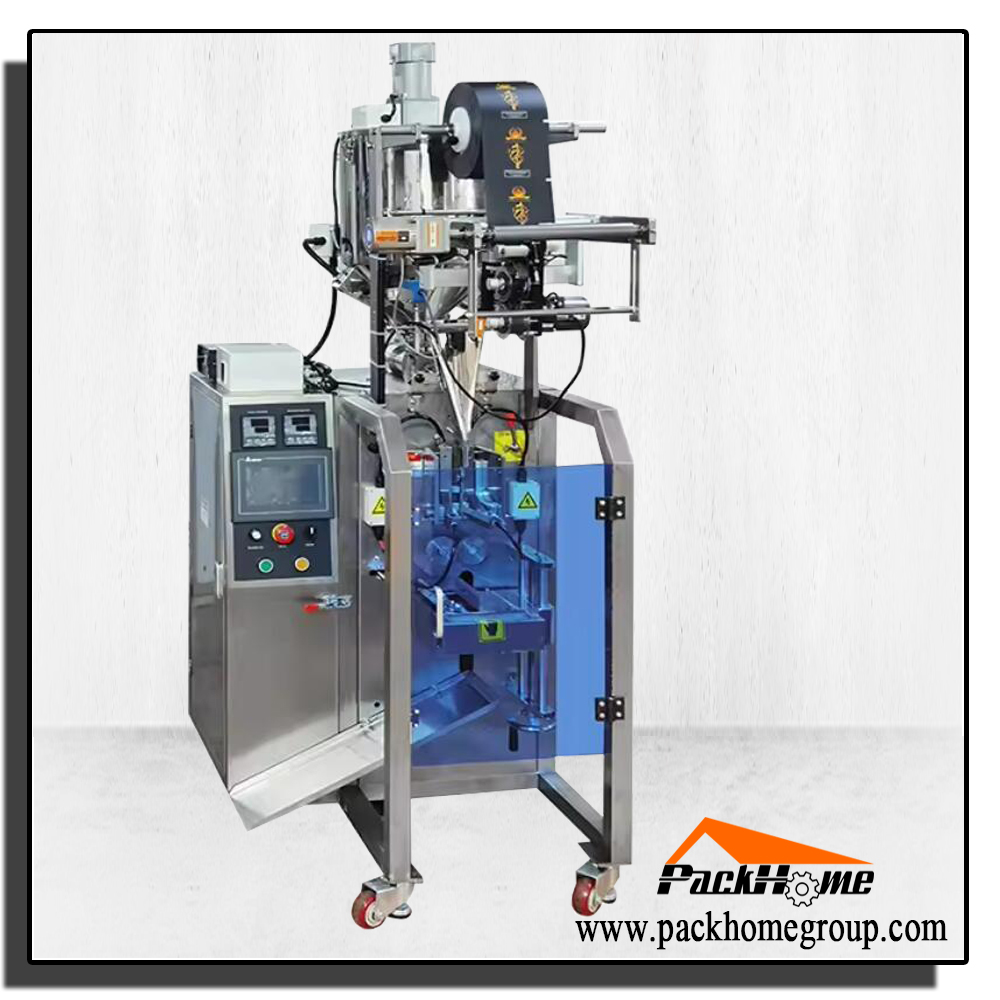

Compact Automatic Liquid Bagging Machine

10-90 bags/min speed

1ML mini packing range

Safe door alarm function

Package: wooden case ( free fumigation)


Description

Searching for an automatic liquid filling machine for small sachets that handles volumes from 1–50g?

Need an economical model without compromising on quality or service?

Our Compact Automatic Liquid Bagging Machine is your ideal solution.

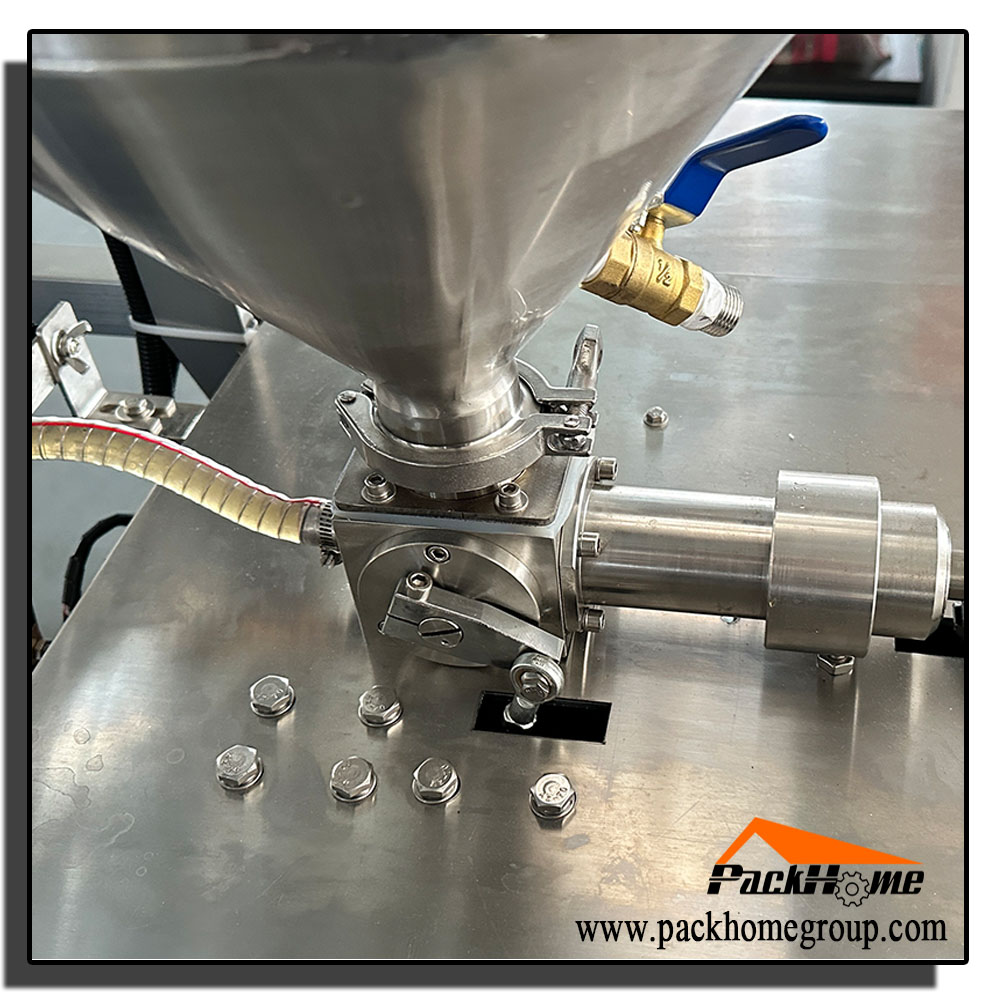

Designed for businesses with limited floor space, this machine packs all the functionality of a full-sized filler into a smaller footprint. Utilizing a reliable pneumatic piston filling pump, it handles a variety of liquid and paste products with ease. Despite its compact size, it features quick-disconnect fittings for easy installation and daily cleaning. The high-precision, leak-free filling nozzle guarantees weight accuracy within ±1%.

Operation is simple: load the packaging film, and the machine automatically forms bags, fills with preset weights, prints production/expiry/batch details, and seals each sachet securely. Optional upgrades include a hopper stirrer, heating function, nitrogen flushing, multi-sachet output, and hang hole punching.

Ideal for startups and small-scale producers seeking a space-saving, cost-effective, and high-quality liquid filling machine backed by assured service support.


Application


Machine Parameter

Available Sealing Way

Stick bag, pillow bag, center seal, 3 / 4 sides bag seal, linked bag

Sachet

Size

                                 Min.Size

10mm(W) × 15mm(L)

                                 Max.Size

100mm(W) × 180mm(L)

Filling weight range

≤50ml ( When over 50ml, need change to penumatic liquid filler)

Packing speed

10-90 bags/min

Power electricity

220V / 1P / 50Hz / 2Kw ( customized)

Film roll diameter

≤Φ220mm

Film thickness

0.04-0.08mm

Suitable film material:

PE / PP / OPP / PVC / PET / CPP / NY / AL / VMPET ( at least 2 layer)

Machine control system

PLC + Touch screen

Machine package size

200kg, 2 m3

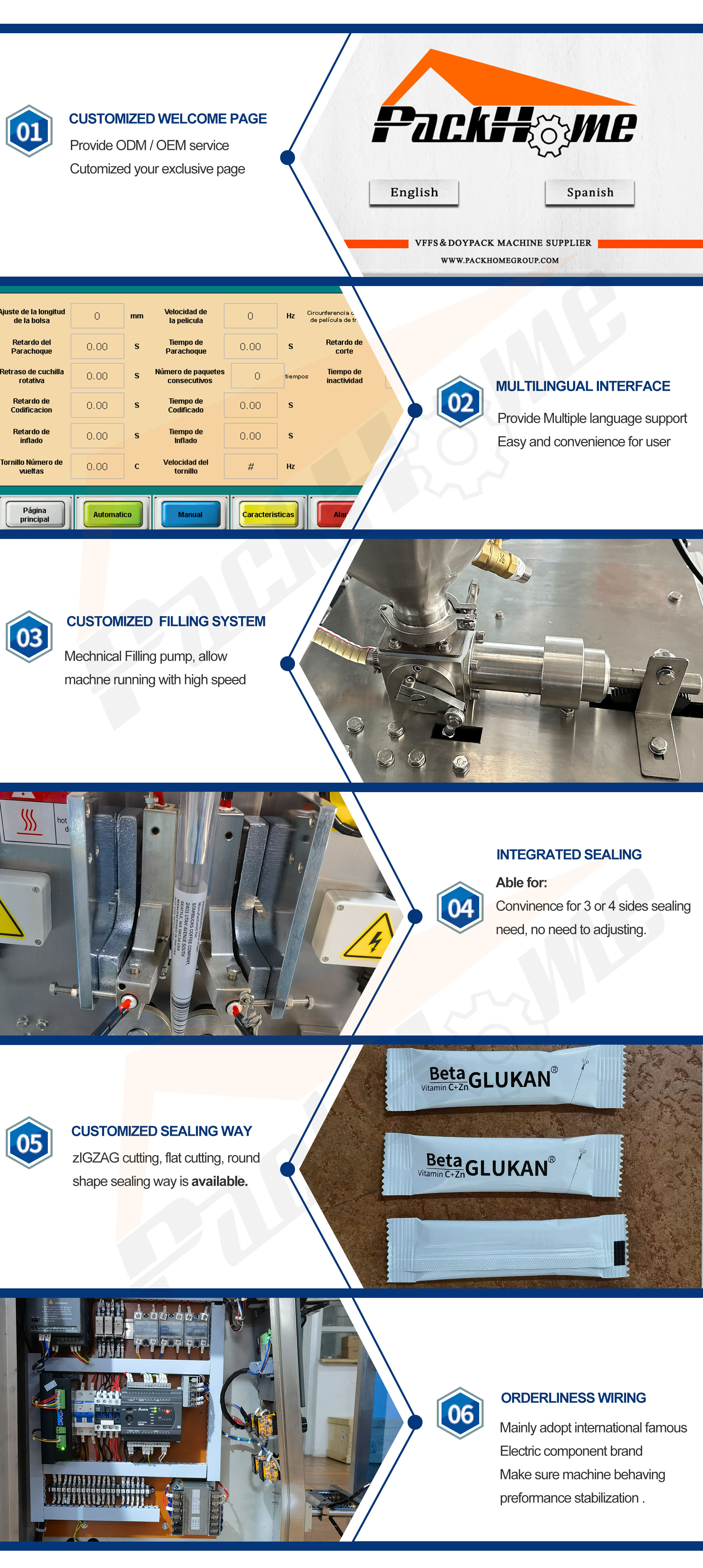

Feature Picture


Export cargo packing


What we do for client:
1. Using strong non-fumigation wooden box package.
2. All cargo stick with unique client`s shipping mark.

Customers Visit


Important

For better offer suggestion and prepare quotation, hope we can know below info from you:

A. Your bag size

B. Your bag picture

C. Packing weight

D. Packing speed requirement

E. Exactly product need to packed
