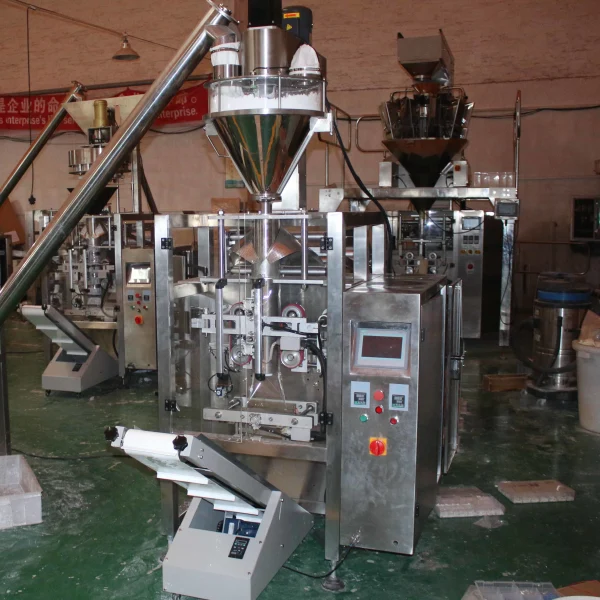

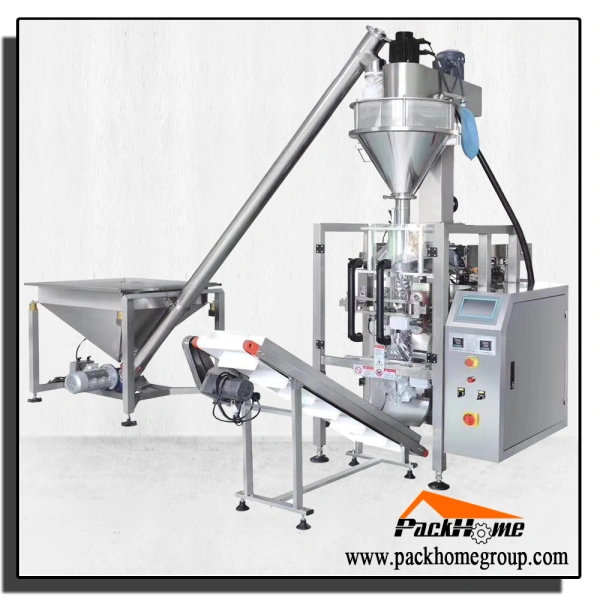

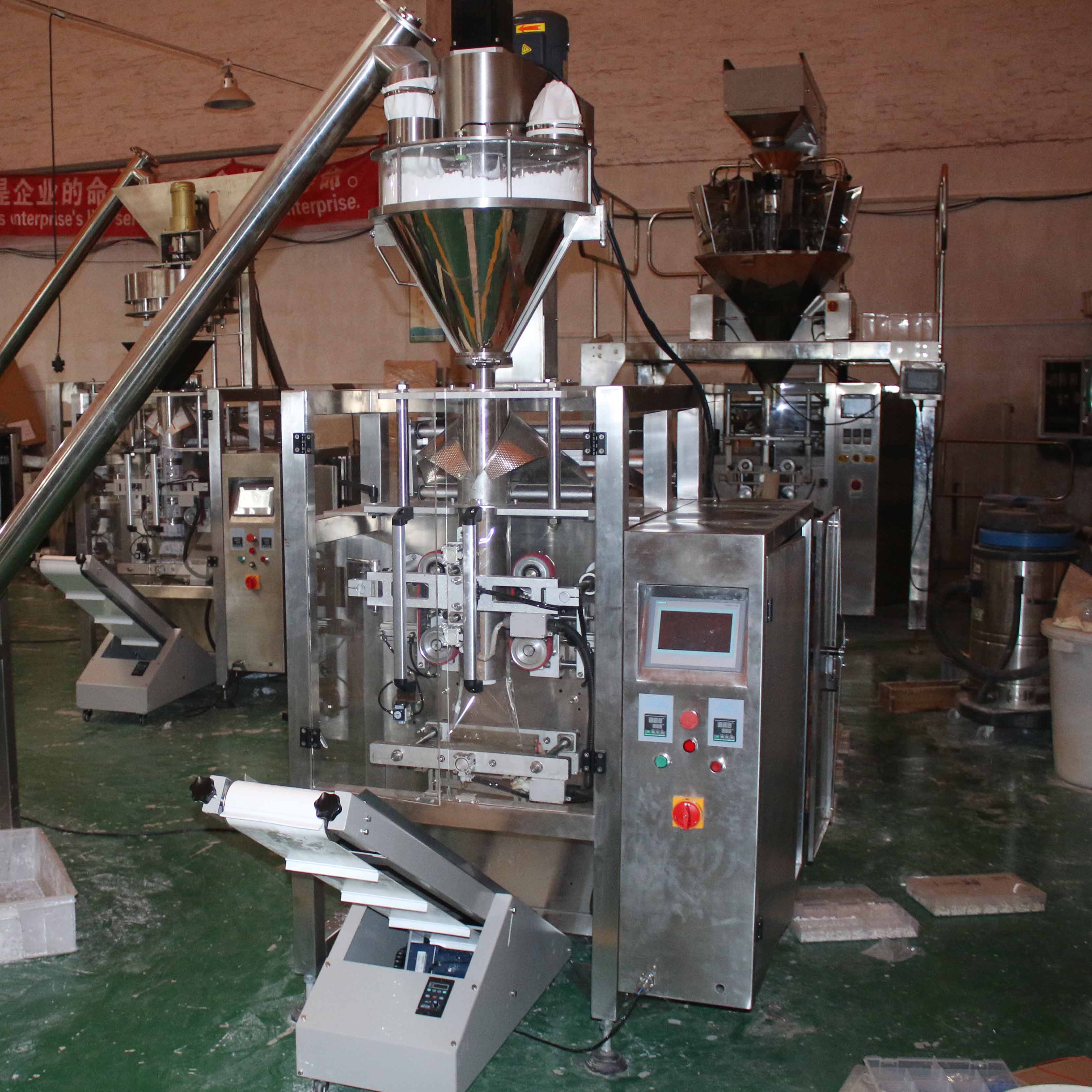

1kg Powder Pouch Form Fill Seal Machine
1kg Powder Pouch Form Fill Seal Machine
1kg Powder Pouch Form Fill Seal Machine
1kg Powder Pouch Form Fill Seal Machine
  • 1kg Powder Pouch Form Fill Seal Machine
  • 1kg Powder Pouch Form Fill Seal Machine
  • 1kg Powder Pouch Form Fill Seal Machine
  • 1kg Powder Pouch Form Fill Seal Machine

1kg Powder Pouch Form Fill Seal Machine

1.Max packing weight 5kg.

2.30-60 bags/mins packing speed.

3.Including production, expiration date printing.

4.Piillow bag, gusset bag, quad bag was available.


Package: wooden case ( free fumigation)


Description

Are you looking for a bagging machine which can packing from 100g-5000g powder product by full automatic?Do you trying to find a economical packing machine model but with reasonable price and assured service?Our 1kg Powder Pouch Form Fill Seal Machine / Powder VFFS Machine can be your first choice!

Our powder packing machine is suitable for most of the non-sticky powder product (such like: flour, starch, coffee powder, etc) If your product it is sticky powder type which similar like: milk powder, coconut powder, spice powder, chocolate powder,etc.We suggest coating with Teflon material for better meatering and filling.

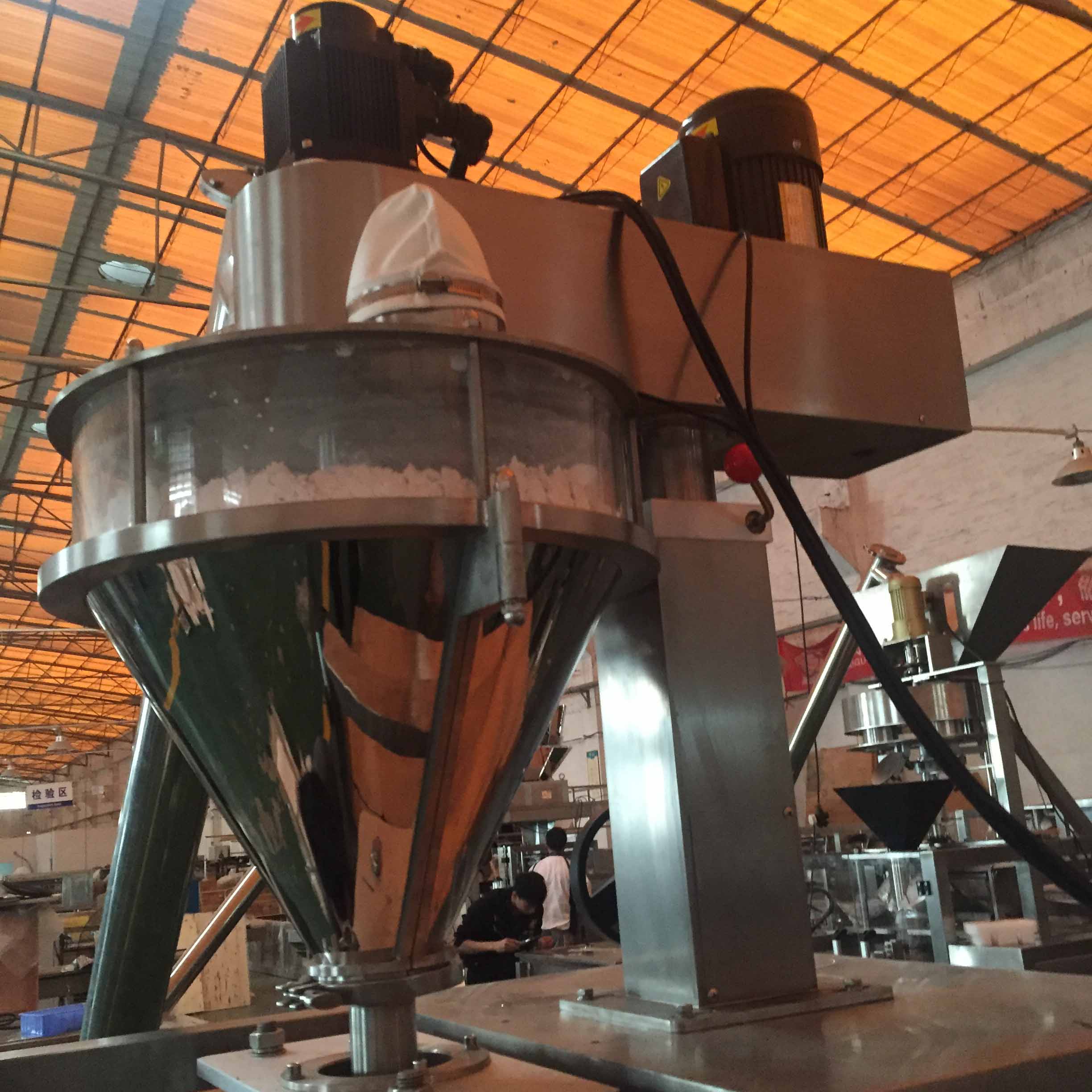

Machine adopted high precision auger filling system which guarantee packing tolerance within 1% (depending on product)Besides, the auger is very easy to taking out and installation back within 10 minutes even a new user.

User just need put on the packing film, then machine will automatic to forming bag, filling material with the setting weight, printing on the production / expirtation / batch number and sealing the bag tightness. Function like: nitrogen gas feeding and linked bag, hanging hole punch also available!


Application


Machine Parameter

Available Sealing Way

Pillow Bag, Gusset Bag, Quad Bag, Linked Bag, 4 Sides Seal Bag

Sachet size range

Min.Size

50mm(W) × 80mm(L)

Max.Size

450mm(W) × 800mm(L)

Filling weight range

≤5000g ( require change bag former + auger filler)

Packing speed

10-50 bags/min

Power electricity

220V / 1P / 50Hz / 2-8Kw ( customized)

Film roll diameter

≤Φ300mm

Film thickness

0.04-0.15mm

Suitable film material:

PE / PP / OPP / PVC / PET / CPP / NY / AL / VMPET ( at least 2 layer)

Machine control system

PLC + Touch screen

Available function

Dust cleaning / Thermal transfer printing / Europe hole punching / Nitrogen gas feeding / Air exhaust

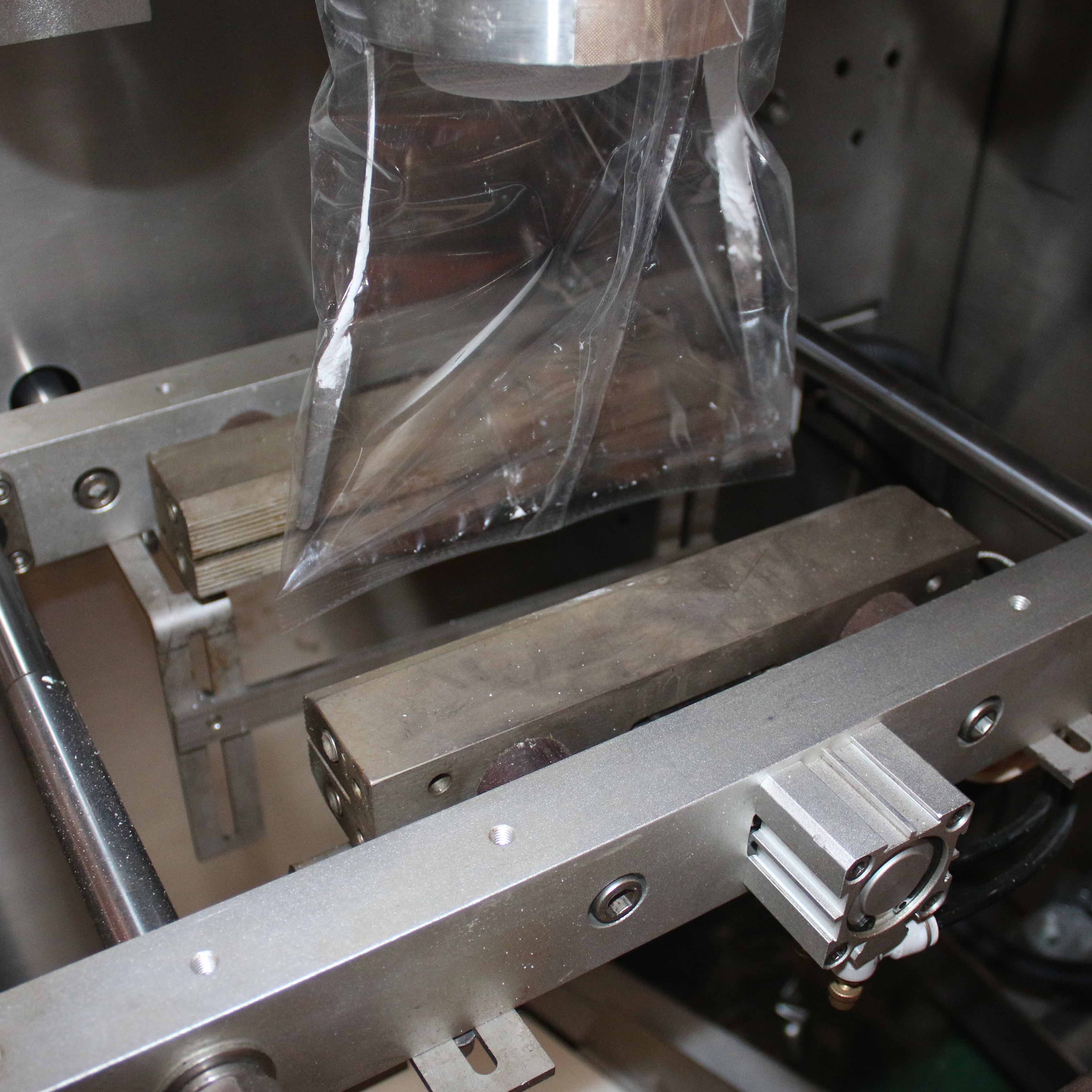

Feature Picture


Export cargo packing


What we do for client:
1. Using strong non-fumigation wooden box package.
2. All cargo stick with unique client`s shipping mark.

Customers Visit


Important

For better offer suggestion and prepare quotation, hope we can know below info from you:

A. Your bag size

B. Your bag picture

C. Packing weight

D. Packing speed requirement

E. Exactly product need to packed
