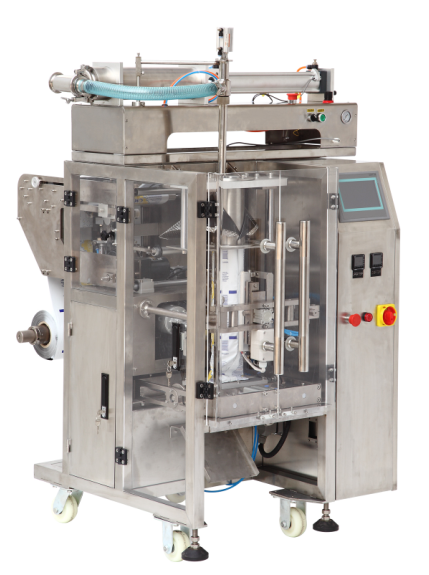

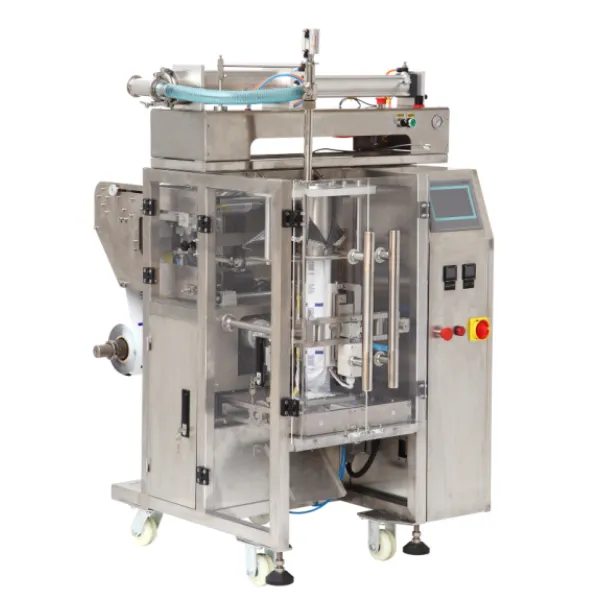

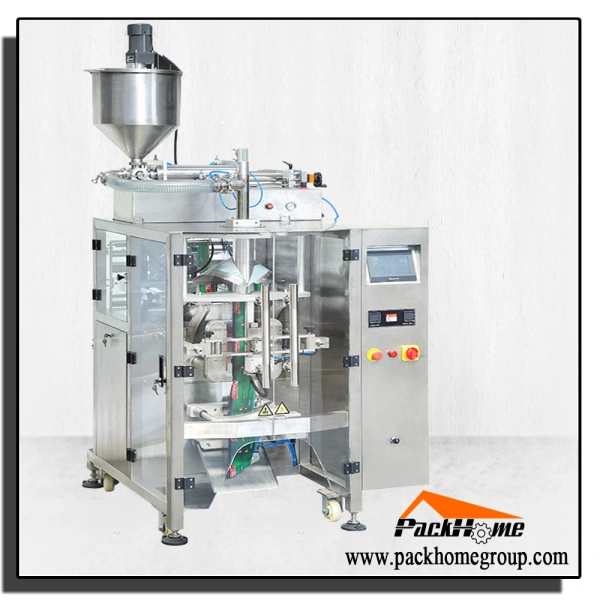

1kg Liquid Paste Sachet Filling Machine
1kg Liquid Paste Sachet Filling Machine
1kg Liquid Paste Sachet Filling Machine
1kg Liquid Paste Sachet Filling Machine
  • 1kg Liquid Paste Sachet Filling Machine
  • 1kg Liquid Paste Sachet Filling Machine
  • 1kg Liquid Paste Sachet Filling Machine
  • 1kg Liquid Paste Sachet Filling Machine

1kg Liquid Paste Sachet Filling Machine

1.Max packing weight 5kg.

2.30-60 bags/min packing speed.

3.Vertical type liquid sachet filling machine.

4.Date printer,nitrogen gas inflation was available.


Package: wooden case ( free fumigation)


Description

Are you looking for a bagging machine which can packing from 100g-5000g for free flow or no-liquidity product? Do you trying to find a economical packing machine model but with reasonable price and assured service?

Our 1kg Liquid Paste Sachet Filling Machine can be your first choice!

Machine adopt PLC control system and air cylinder for operation, make sure each parts can be working independent. Easy for maintain and cleaning. We also design a anti-leaking valve, make sure product will be not dropping, guarantee the bag sealing tightness.

User just need put on the packing film, then machine will automatic to forming bag, filling material with the setting weight, printing on the production / expirtation / batch number and sealing the bag tightness. Function like: production date printing, chain bag, hanging hole function also available!


Application


Machine Parameter

Available Sealing Way

Pillow Bag, Gusset Bag, Quad Bag, Linked Bag, 3/4 Sides Seal Bag

Sachet size range

Min.Size

50mm(W) × 80mm(L)

Max.Size

450mm(W) × 800mm(L)

Filling weight range

≤10000g ( require change bag former )

Packing speed

10-50 bags/min

Power electricity

220V / 1P / 50Hz / 2-8Kw ( customized)

Film roll diameter

≤Φ300mm

Film thickness

0.04-0.15mm

Suitable film material:

PE / PP / OPP / PVC / PET / CPP / NY / AL / VMPET ( at least 2 layer)

Machine control system

PLC + Touch screen

Available function

Dust cleaning / Thermal transfer printing / Europe hole punching / Nitrogen gas feeding / Air exhaust

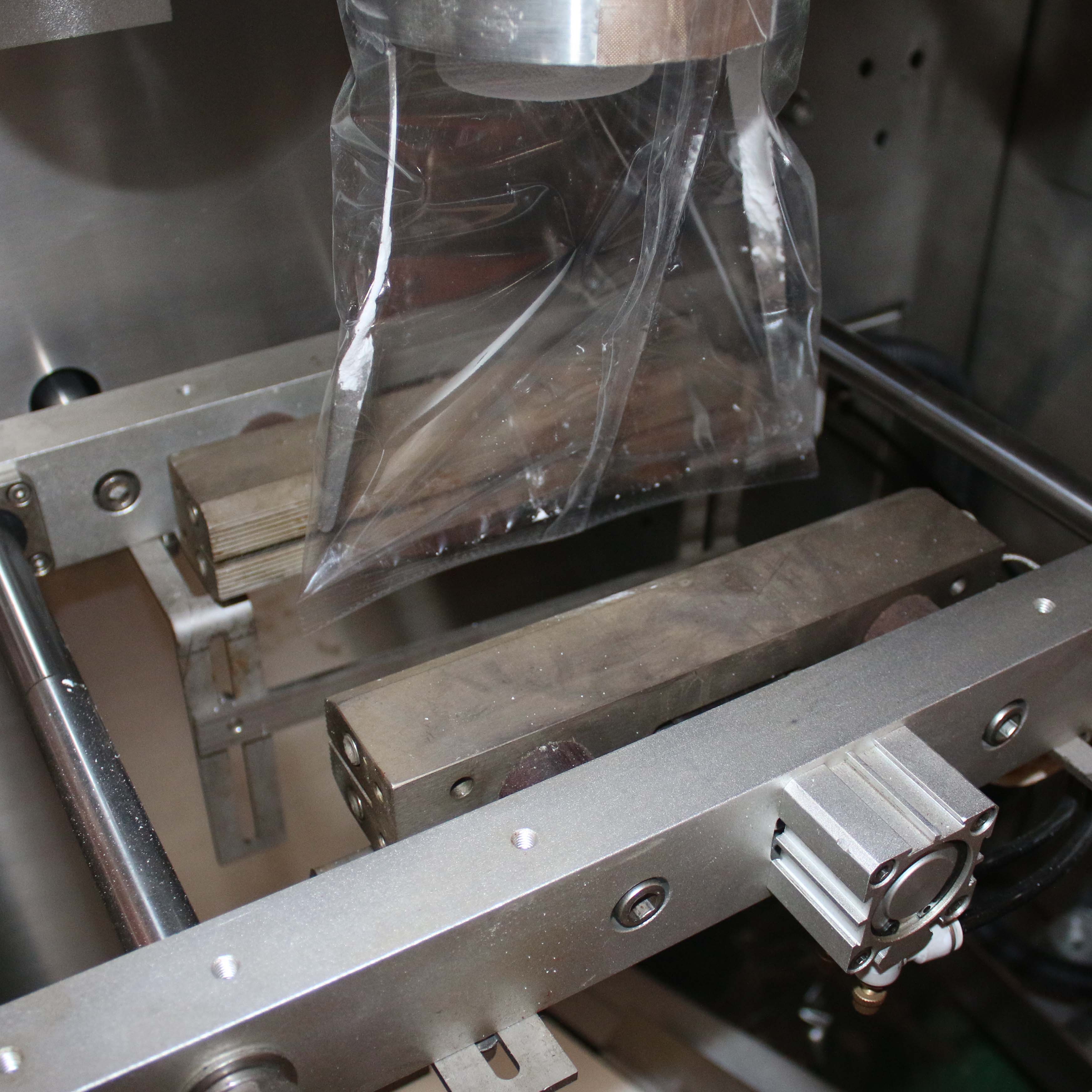

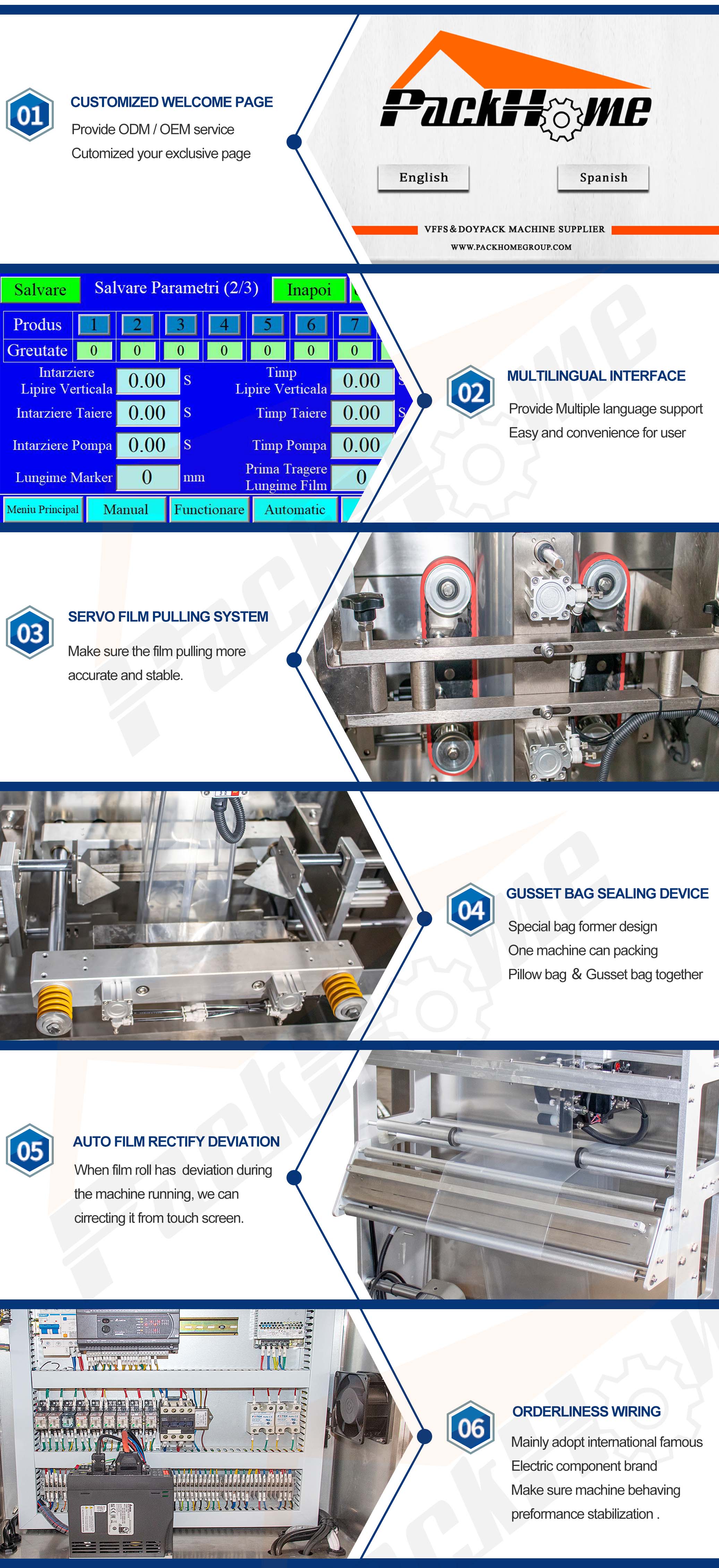

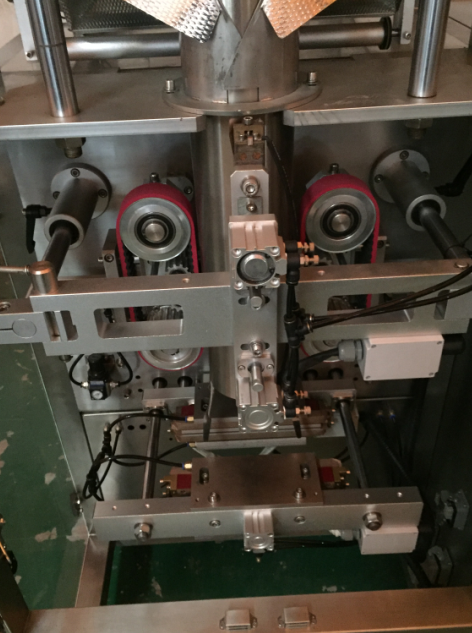

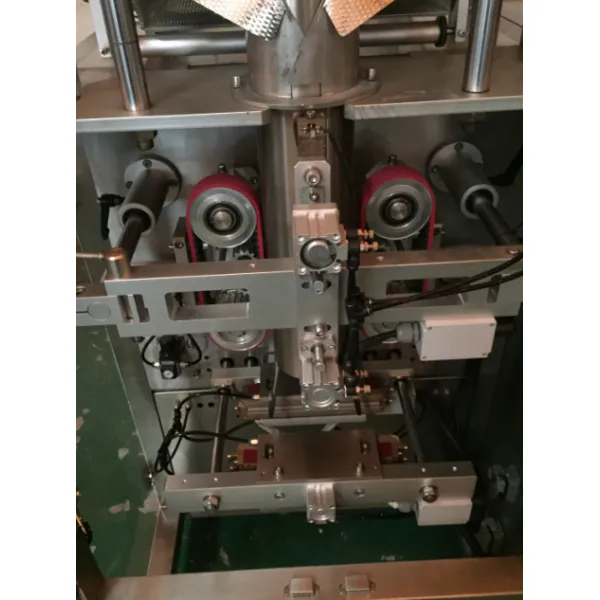

Feature Picture


Export cargo packing


What we do for client:
1. Using strong non-fumigation wooden box package.
2. All cargo stick with unique client`s shipping mark.

Customers Visit


Important

For better offer suggestion and prepare quotation, hope we can know below info from you:

A. Your bag size

B. Your bag picture

C. Packing weight

D. Packing speed requirement

E. Exactly product need to packed
