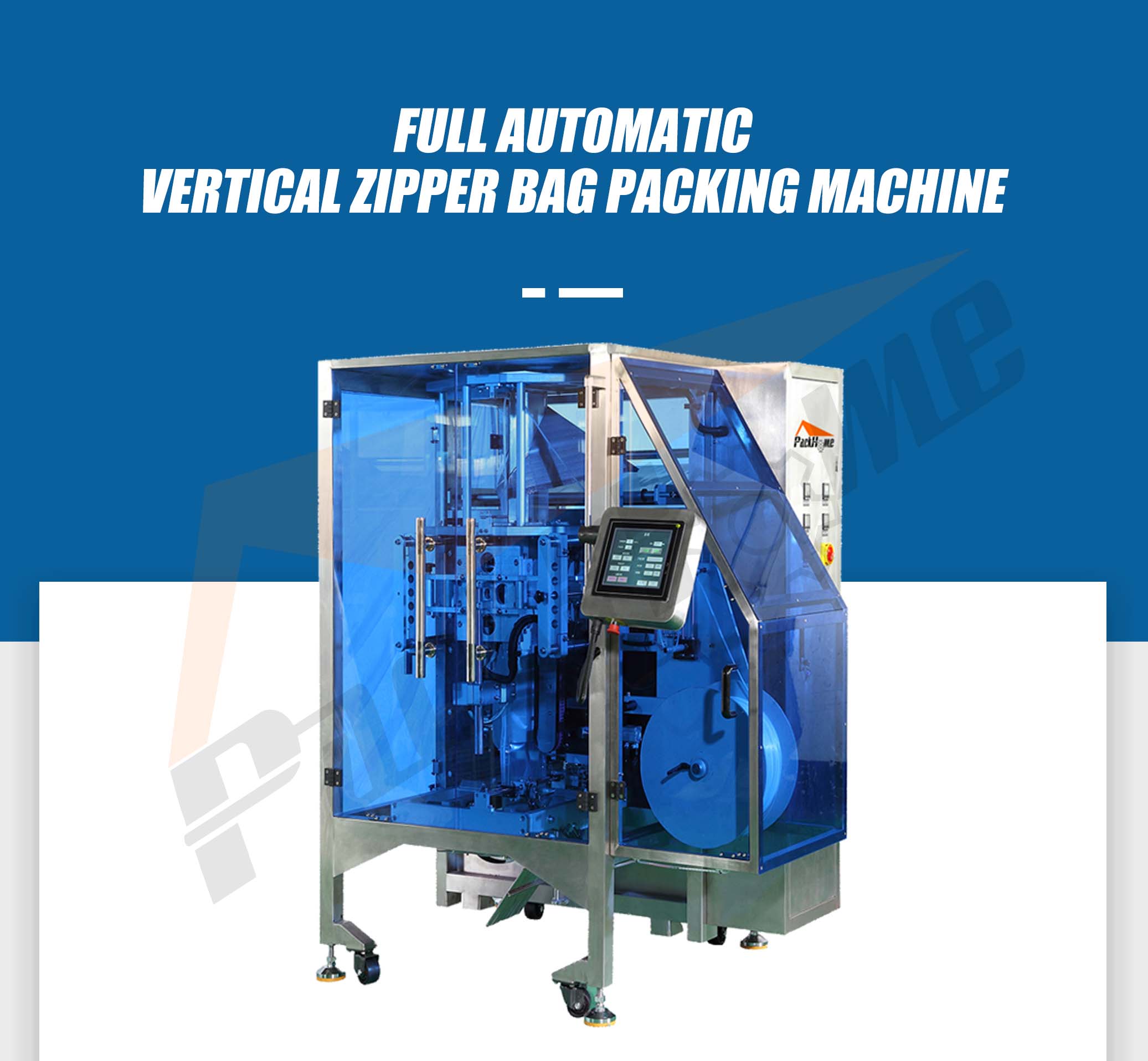

Vertical Zipper Bag Form Fill Seal Machine

1.Film width from 520-680mm.

2.Automatic form fill seal with zipper

3.Auto warning protection function.

4.Including production, expiration date printing.

Package: wooden case ( free fumigation)

1. Description:
Vertical zipper bag form fill seal machine was design for zipper bag type which achieve whole full automatic process like forming, filling, sealing. With different filling system can be using for packed candy, powder, granule, paste etc.


2. Machine feature:

A.Import PLC computer control system, human-machine screen, easy touch screen operation.

B.With imported servo film transporting system and mark sensor, accurate positioning, perfect packing.

C.Perfect automatic alarm function, to minimize the loss.

D.Combine with metering device, it can finish the process of metering, feeding, filling, bag making, printing.

3. Technical parameter:

Sachet type

Zipper bag, stand up zipper bag

Sachet size range

Max.Size

50(W)×100mm(L)

Min.Size

260mm(W)×320mm(L)

Filling weight range

≤Customized

Packing speed

5-30 bags/min
(depending on bag size and filling weight)

Electricity  Power

5KW

Power Electricity

220V /380V,  50 / 60Hz

Film Roll Diameter

≤Φ450mm

Max Film Width

720mm

Machine Dimension(L×W×H)

1733mm x 1932mm x 2273mm

Weight

600KG

PS: How to calculate the bag size:

Film width= height+height+depth <680mm  Zipper-lock material: PE, Standard zipper width:10mm-12mm


1478745292276321.jpg   1478745915229748.jpg

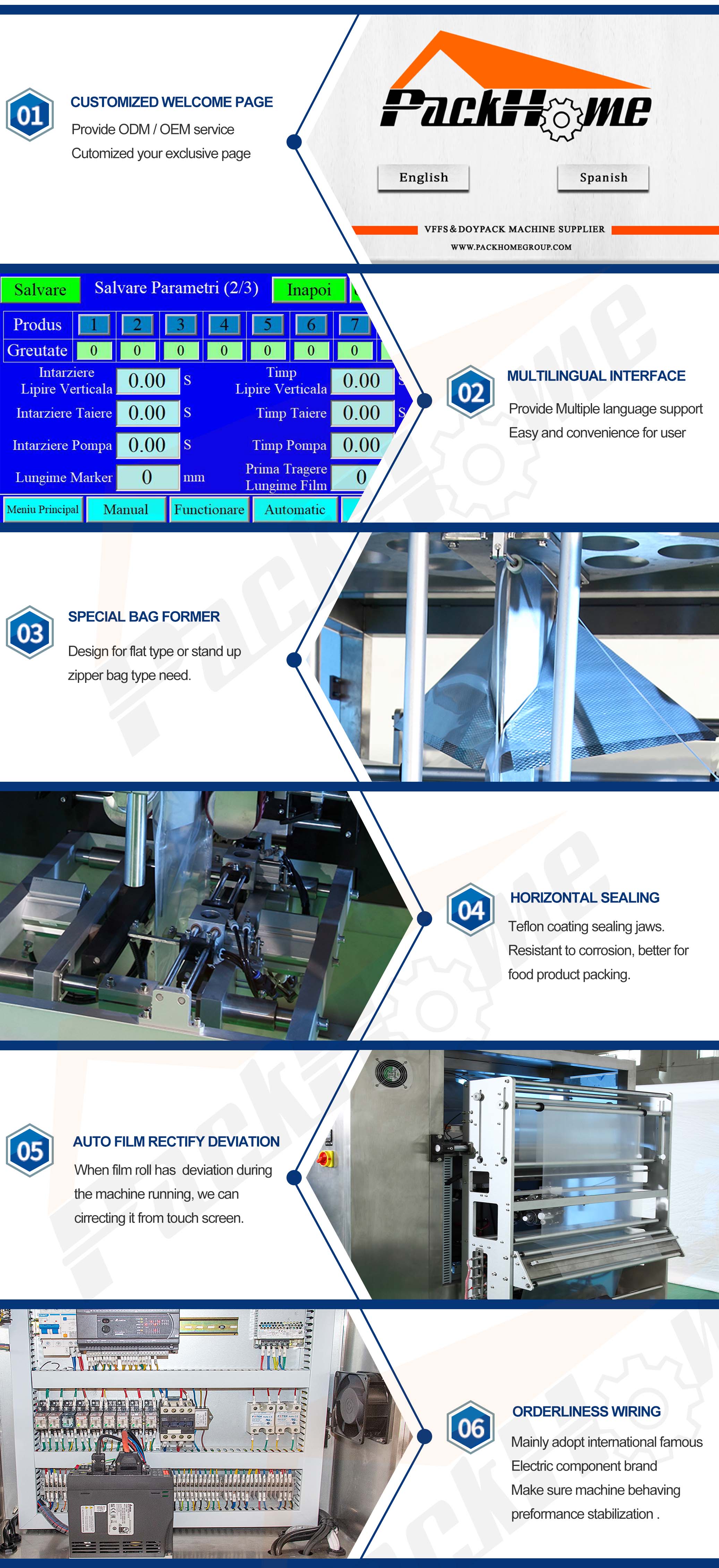

4. Machine detial picture:                                                                                                                 Machine outside look: 1508158681839194.jpg

Bag former:                1508159343563131.jpg

Sealing part:              1508159342382516.jpg

5. Sample:




6.Zipper bag machine video on YOUTUBE:

  https://youtu.be/JsLPSTpaq8E (zipper bag making process)

7. Machine real project cases:
http://www.packhomegroup.com/en/project-case_l146_1.html


For better offer our suggestion and prepare quotation, hope we can know below info:

A. Your bag size

B. Your bag picture

C. Packing weight

D. Packing speed requirement

E. Exactly product need to packed
