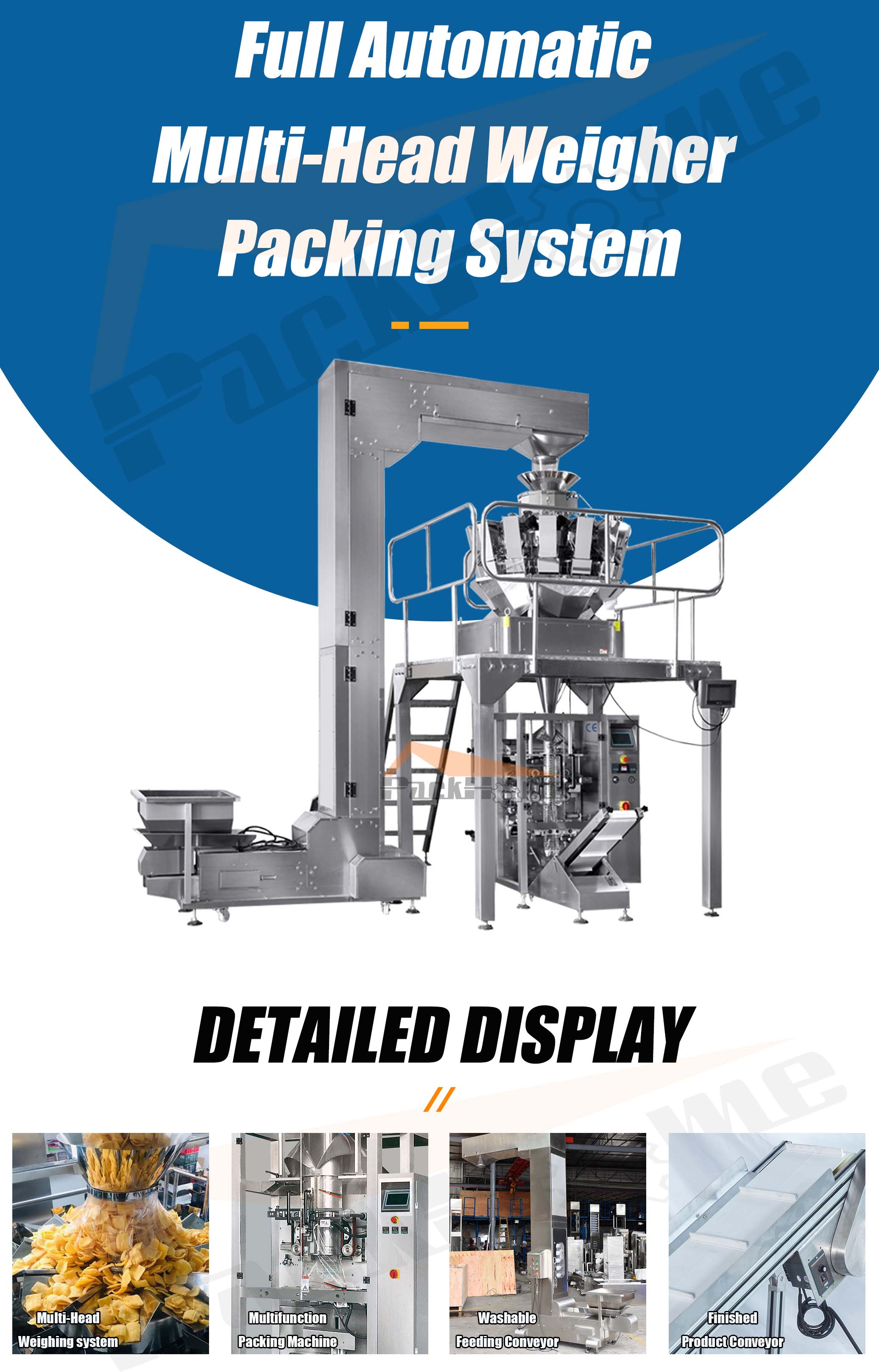

Multi-Head Weigher Automatic Packing Line

1.Max packing weight 5kg.

2.30-60 bags/min packing speed.

3.Interlock automatic sachet packing line.

4.Suitable for pillow bag, quad bag, gusset bag.

Package: wooden case ( free fumigation)

Are you looking for a sachet packing machine line which can packing from 100g-2kg solid product full automatic?Do you trying to find a economical packing machine model but with high quality and assured service?
Our Automatic Sachet Packing Line can be your first choice!
  Machine adopt PLC control system and air cylinder for operation, make sure each parts can be working independent and easy for maintain and cleaning.Nitrogen gas inflation, batch number printing, handing hole making, etc function was available. Bag type like: pillow bag, 4 sides bag seeal, gusset bag, quad bag was no problem for this model.
   Suitable products like:
candy, seeds, jelly, pet foods, puffy foods, pistachio, peanuts, nuts, raisins etc. and big shell nuts, hardwares, dried fruits, frozen foods, snack foods, meatballs and so on.,etc.The Packing weight tolerance only ± 1%.
If working with other filling system like: dosing cup, liquid pump, chain buckets, auger filler etc can be using to pack grain, liquid, powder products.
1.Automatic packing line Introduction:
A. Z type elevator: It is using to help user achieve product automatic feeding and stopping when packing machine need.

B. Multi-head weigher: using to automatic weighting and filling the product, very accurate,the weigher's computer determines the weight of product in each individual weigh hopper and identifies which combination contains the weight closest to the target weight.Then opens all the hoppers of this combination and the product falls, via a discharge chute, into a bagmaker or, alternatively, into a distribution system which places the product.

C. Platform: normally using to support weigher and easy for operator to cleaning and inspecting when real production.

D. Sealing part: adopt servo motor film pulling, servo motor sealing, working with horizontal zig cut effect, make the packing speed faster and bag sealing better.

E. Finished products conveyor: it is using to help user receive the product when after package and send into next process.

2.Packing film options:
Cellophane/polythene ,polyester/Coating aluminum/polythene, polyester /polypropylene, bopp film nylon compounded film etc, which over 2 layers and can be heat-sealed.

3.Available bag sealing option:


3. Automatic packing line technical parameter:

Sachet type

Pilow bag, 4 sides bag seal
gusset bag, quad bag

Sachet size range

Max.Size

100mm(W)×350mm(L)

Min.Size

100mm(W)×400mm(L)
(2 times film pulling length can be 800mm)

Filling weight range

≤5kg

Packing speed

10-50 bags/min
(depending on bag size and filling weight)

Electricity  Power

3.5KW

Power Electricity

220V /380V,  50 / 60Hz

Film Roll Diameter

≤Φ450mm

Max Film Width

720mm

Machine Dimension(L×W×H)

1400mm x 1200mm x 1600mm

Weight

500KG

4. Automatic packing line feature picture:

5. Packaging machine bag sealing type and effect:




6. Strong non-fumigation wooden case machine package:

7. Automatic packing line video on youtube:
  https://youtu.be/odIhSvzfxy8 (Potato chips package example)

8. Machine real project cases:
   http://www.packhomegroup.com/en/project-case_l146_1.html
9. Our company strength:
    A. 24 hours standby for machine inquiry and technicial support need.
    B. Provide on site installation and debugging service.
    C. All machine with CE certification.
    D. With distributor in: Italy, Japan, Korea, USA, Australia, Malaysia, Africa,South America etc.
10. Frequently Asked Question
     A. Price item options: EXWORK,FOB,CIF,CFR
     B. Payment terms : T/T 30% deposit, 70% balance before shipment.
     C. Delivery Time : 20- 30 days depending on packing requirement.
     D. Shippment : By sea or by air.
     E. Warranty time :One year free for replacement of wearing parts, cost price beyond warranty

11. Real machine project case in USA:




For better offer our suggestion and prepare quotation, hope we can know below info:

A. Your bag size

B. Your bag picture

C. Packing weight

D. Packing speed requirement

E. Exactly product need to packed
