Horizontal Form Fill Seal Machine

1.Servo motors system.

2.Cutting knife brake design.

3.No empty bag package.

4.Multi program working pattern.

5.Simple structure, less noise andfriction.

Package: wooden case ( free fumigation)



1.Machine Introduction:
 Horizontal Form Fill Seal Machine was also named flow packer.it is design for pckaging various kinds of regular objects like biscuits, pies, chocolates, bread, instant noodles,  moon-cakes, drugs, daily appliances, industrial parts, paper boxes, plates, etc
    Machine working with PLC system, able for multi language setteing and adding function. Can achieve whole packing process like bag forming, metering, filling, sealing, counting, cutting and batch number printing.
2.Machine features:
A.. Dual frequency conversion control, Bag length can be set and cut in one step, saving time and film.
B. Interface features easy and quick setting and operation.
C. Self failure diagnosis, clear failure display.
D. High sensitivity photoelectric eye color tracing, numerical input of cutting/sealing position for extra accuracy.
E. Temperature independent PID control, more suitable for packaging different materials.
F. Positioned stop function, without sticking knife or wasting film.
G. Simple driving system, reliable working, convenient maintenance.
H. All control is realized through software, easy for function adjusting and technical upgrade.

3. Technical parameter:

Sachet type

Flat bag, pillow bag

Max bag width

400mm

Max bag length

700mm

Bag height range

Max 200mm

Electricity  Power

2.5KW

Power Electricity

220V single phase,  50 / 60Hz

Max Film Width

1000mm

Weight

600KG

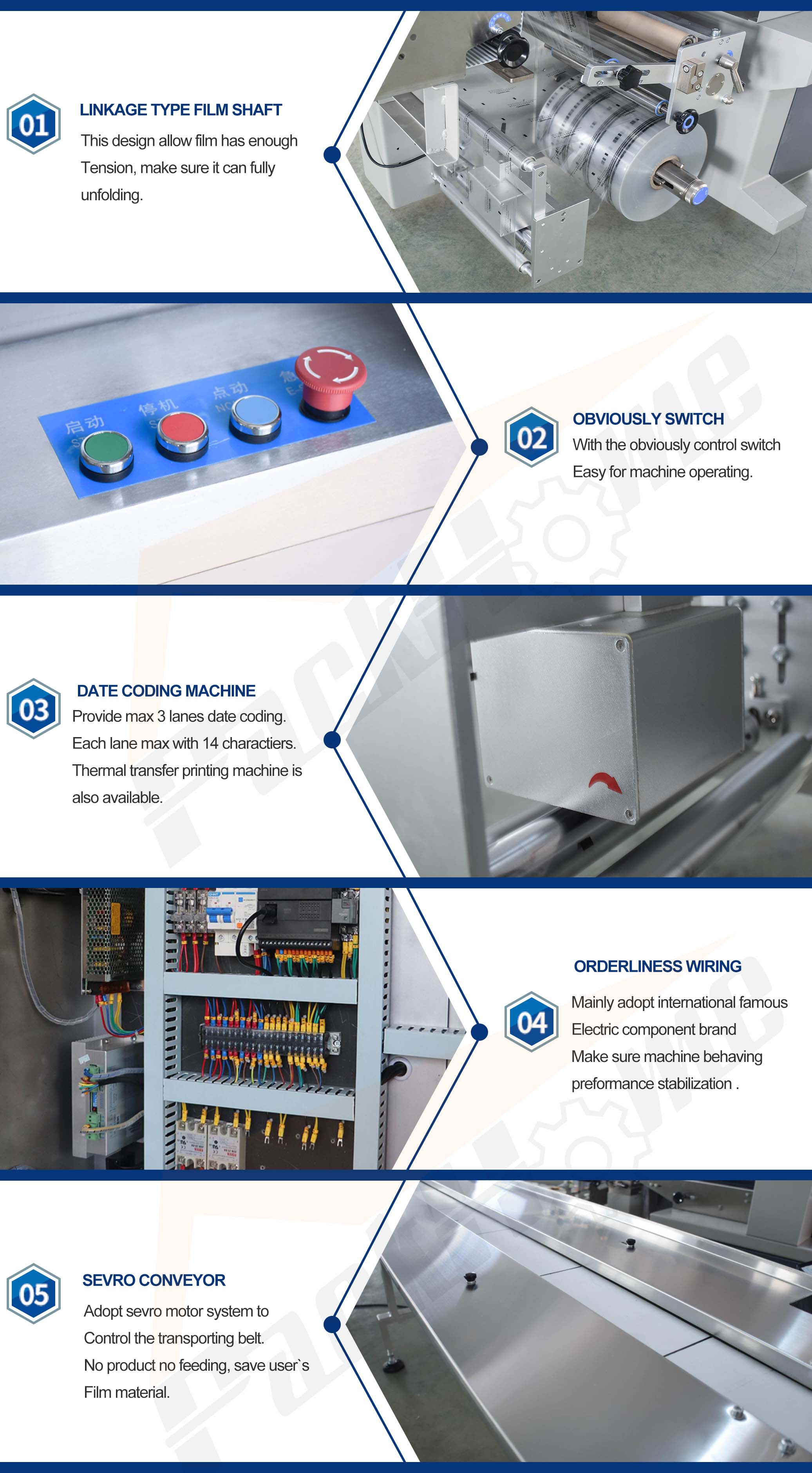

4. Machine feature picture:                                                                                                                             A. Sealing part protection 1549700662910739.jpg

  B. Film loading device1549700664980340.jpg

C. Transport channel 1549700665203614.jpg

D. Electric component layout:1549700663643372.jpg

5. Our company strength:
    A. 24 hours standby for machine inquiry and technicial support need.
    B. Provide on site installation and debugging service.
    C. All machine with CE certification.
    D. With distributor in: Italy, Japan, Korea, USA, Australia, Malaysia,Africa, South America market etc.
6. Frequently Asked Question
     A. Price item options: EXWORK,FOB,CIF,CFR
     B. Payment terms : T/T 30% deposit, 70% balance before shipment.
     C. Delivery Time : 20- 30 days depending on packing requirement.
     D. Shippment : By sea or by air.
     E. Warranty time :One year free for replacement of wearing parts, cost price beyond warranty.


7. Sample:


8. Machine video on youtube:

 https://youtu.be/dQ-gdSL3pQQ (vegetable package example)

  https://youtu.be/rrpv3PBB-GY(Bread with nitrogen gas feeding package example)

For better offer our suggestion and prepare quotation, hope we can know below info:

A. Your bag size

B. Your bag picture

C. Packing weight

D. Packing speed requirement

E. Exactly product need to packed
