1kg Automatic Grain Bag Packing Machine

1.1-5kg packing range.

2.30-60 bags/min packing speed.

3.Automatic vertical grain bag packing machine.

4.Date printer,nitrogen gas inflation was available.

Package: wooden case ( free fumigation)


Are you looking for a sachet packing machine which can packing from 100g-2kg grain product by automatic? Do you trying to find a economical packing machine model but with high quality and assured service?                                                                                                                            Here Automatic Grain Bag Packing Machine can be your first choice!                                            Machine adopt PLC control system and air cylinder for operation, make sure each parts can be working independent. Easy for maintain and cleaning. Nitrogen gas inflation, batch number printing, handing hole making, etc function was available. Bag type like: pillow bag, 4 sides bag seeal, gusset bag, quad bag was no problem for this model.                                                                                                                     Suitable products like: sugar, salt, beans, sojas, peanuts, candy, rice, seasame etc. The Packing weight tolerance only ± 1%.                                                                                                                                       If working with other filling system like: Auger filler, liquid pump, chain buckets, line weigher etc can be using to pack powder, liquid, solid products.

1. Machine introduction:

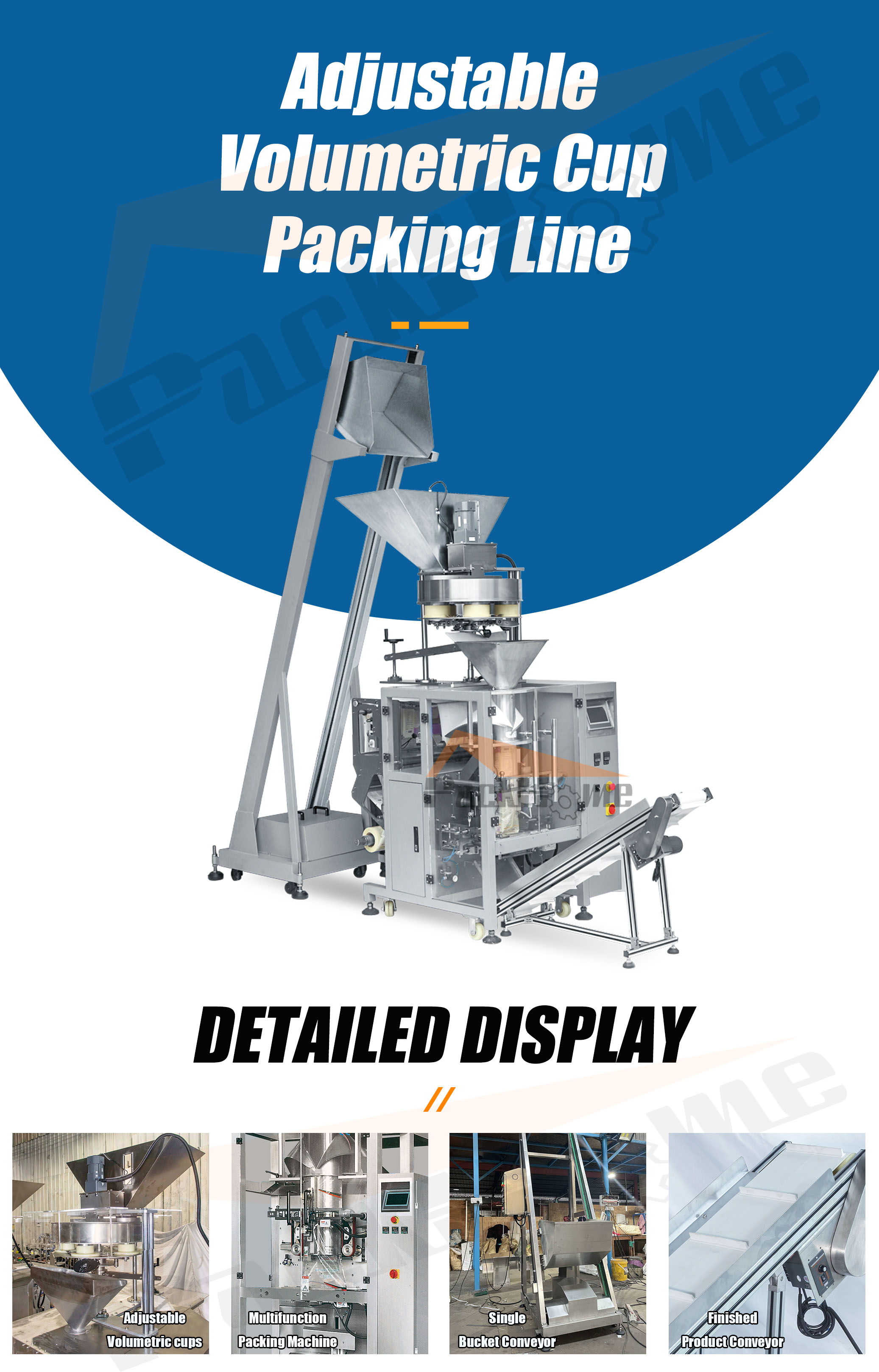

A. Volumetric cup feeding systemused to dispense a variety of dry free-flowing products such as                                                                      beans, rice, pet food, pop-corn, candy, seeds and many more.                                                                      cups of varying sizes can be changed out within minutes to                                                                            accommodate  various products.
B. Sealing part:
adopt servo motor film pulling, servo motor sealing, working with horizontal zig cut                                         effect, make the packing speed faster and bag sealing better.
C. Infeed conveyor:
it is using to help user achieve product automatic feeding and stopping when                                               packing machine need.

2.Packing film options:
Cellophane/polythene ,polyester/Coating aluminum/polythene, polyester /polypropylene, bopp film nylon compounded film etc, which over 2 layers and can be heat-sealed.

3.Available bag sealing option:


 4.Technical parameter:

Sachet type

Pilow bag, 4 sides bag seal
gusset bag, quad bag

Sachet size range

Max.Size

100mm(W)×350mm(L)

Min.Size

100mm(W)×400mm(L)
(2 times film pulling length can be 800mm)

Filling weight range

≤1.5kg

Packing speed

10-50 bags/min
(depending on bag size and filling weight)

Electricity  Power

3.5KW

Power Electricity

220V /380V,  50 / 60Hz

Film Roll Diameter

≤Φ450mm

Max Film Width

720mm

Machine Dimension(L×W×H)

1400mm x 1200mm x 1600mm

Weight

500KG

5. Machine feature picture:


6.Bag packing example:



7. Machine package process:


8. Machine video on Youtube:

https://youtu.be/3GlfnSYkBxM( South Africa model for seed package)

https://youtu.be/ETbLkkqjGfQ( 4 head weigher system rice package)

9. Machine real project cases:
http://www.packhomegroup.com/en/project-case_l146_1.html

10. Our company strength:
    A. 24 hours standby for machine inquiry and technicial support need.
    B. Provide on site installation and debugging service.
    C. All machine with CE certification.
    D. With distributor in: Italy, Japan, Korea, USA, Australia, Malaysia,Africa, South America market etc.
11. Frequently Asked Question

     A. Price item options: EXWORK,FOB,CIF,CFR
     B. Payment terms : T/T 30% deposit, 70% balance before shipment.
     C. Delivery Time : 20- 30 days depending on packing requirement.
     D. Shippment : By sea or by air.
     E. Warranty time :One year free for replacement of wearing parts, cost price beyond warranty.


For better offer suggestion and prepare quotation, hope we can know below info from you:

A. Your bag size

B. Your bag picture

C. Packing weight

D. Packing speed requirement

E. Exactly product need to packed
